PAN MV-1000A | PANCONTROL

Voltage and continuity tester, PAN MV-1000A, PANCONTROL

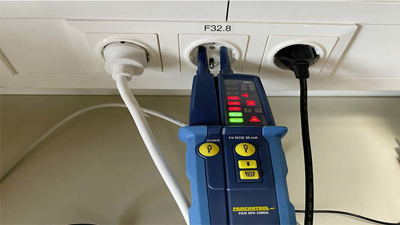

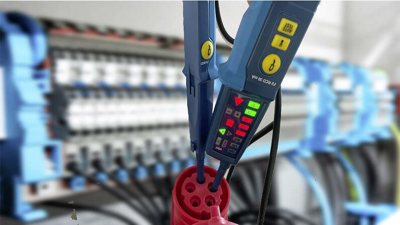

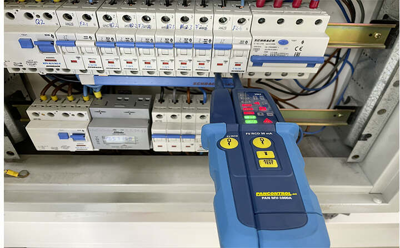

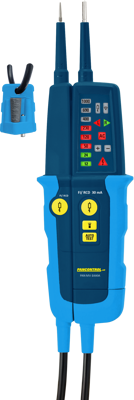

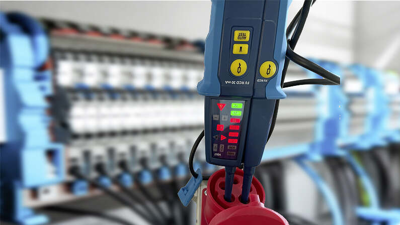

The PAN MV-1000A is a compact voltage and continuity tester for professional use in households, businesses, and industry. The device enables precise voltage measurements in the range from 12 V to 1000 V (AC/DC) as well as reliable detection of line breaks and phase position. The voltage is indicated by a multi-stage LED display. Green LEDs indicate low voltages up to 24 V, while red LEDs indicate potentially dangerous voltages above 50 V. A switchable load (7 kΩ) reliably suppresses stray voltages and helps identify real voltage sources. The MV-1000A also features a 2-pole phase sequence indicator, a 30 mA residual current device (RCD) test, an acoustic continuity test, and a single-pole phase test with an audible warning. An integrated LED flashlight and automatic shutdown enhance ease of use.

Features

• 2-pole rotary field indication
• Test button for 30 mA FI - circuit breaker
• Single-pole phase testing with acoustic alarm
• Switchable load for suppressing stray voltages
• LED flashlight
• Auto power off
• Water and dust protection class IP 64
