PAN KLM 2000 | PANCONTROL
Cable length meterfor multipole, network and coaxial cables

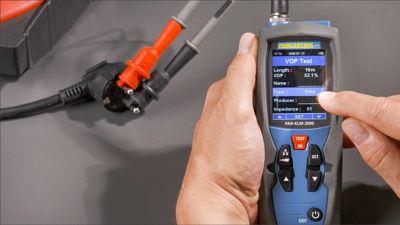

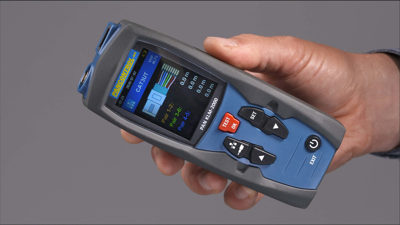

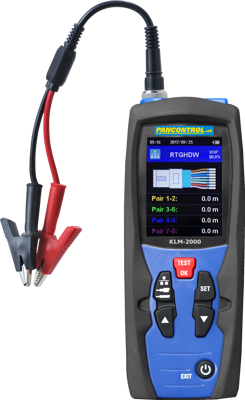

Digital cable length measuring device, PAN KLM 2000, PANCONTROL
The PAN KLM-2000 is a high-precision cable length measuring device with a digital display based on the principle of time domain reflectometry (TDR). It is suitable for measuring the length of stress-free copper and aluminum cables - both multi-core and network and coaxial cables. With a measuring range of 5 to 3000 m and an accuracy of up to ±2 %, the device enables reliable localization of cable faults and precise determination of cable lengths - ideal for electrical installers, network technicians and maintenance services.

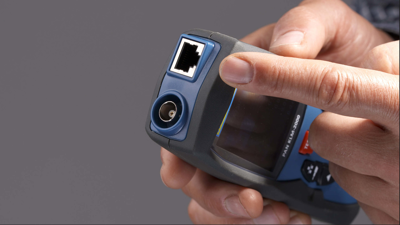

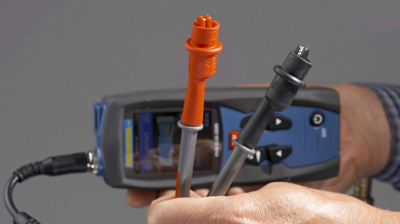

Thanks to its color display, backlight, and intuitive menu navigation, the KLM-2000 is easy to use. The integrated VOP (Velocity of Propagation) library offers storage for up to 119 cable types—99 of which are user-defined. Measurements are performed single-sided and contactless via BNC or RJ45 connectors. Included are test cables with crocodile clips, a practical carrying case and detailed operating instructions.
Features
- Backlight
- Memory for readings
- Time-Domain Reflectometry (TDR) / Reflectometer
- For copper and aluminum cables
- Auto power off
| Filter | Property | Value |
|---|---|---|
| Weight | 184 g | |
| Height | 62 mm | |
| Width | 37 mm | |
| Length | 152 mm | |
| Product type | cable length meter |
| Property | Value |
|---|---|
| Customs tariff number | 90178090 |
| Country of origin | CN |
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
