ERJS03J201V | Panasonic

Name: Resistor, thick film, SMD 0603 (1608), 200 Ω, 0.1 W, ±5 %, ERJS03J201V
Brand: Panasonic
SKU: 86E3193
Price: 0.03 EUR
Availability: OutOfStock

Resistor, thick film, SMD 0603 (1608), 200 Ω, 0.1 W, ±5 %, ERJS03J201V

Order No.: 86E3193

EAN: 4099879460516

MPN:

ERJS03J201V

Series: ERJS03

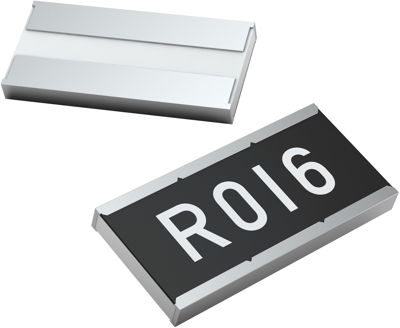

Image may differ

Key Specification:

ohmic resistance 200 Ω

Tolerance ±5 %

Power 0.1 W

Design SMD 0603 (1608)

Show 169 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.0309 € *

Available: 0 pcs.

Leadtime: On Request **

Add to Cart

Total Price:

0.03 € *

*incl. VAT plus shipping costs

**Subject to prior sale

5000 pcs.

0.0309 €

Description

Technical specifications

Description

SMD Thick film resistor, ERJS03J201V, Panasonic

Resistor, Thick film, SMD 0603, 200 Ω, 0.1 W, ±5 %

Features

High resistance to sulfurization achieved by adopting an Au-based inner electrode and Ag-Pd-based inner electrode
High reliability
Suitable for both reflow and flow soldering
Low Resistance type
RoHS compliant

Technical specifications

	ohmic resistance	200 Ω
	Design	SMD 0603 (1608)
	Width	0.8 mm
	Height	0.45 mm
	Length	1.6 mm
	Power	0.1 W
	max. operating temperature	155 °C
	min. operating temperature	-55 °C
	Tolerance	±5 %
	Technology	thick film
	Temperature coefficient	±200 ppm/K

Show similar products 0

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	JP
Customs tariff number	85332100
Original Packaging	Reel with 5,000 pieces

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes
