ERA3APB1132V | Panasonic

Name: Resistor, metal film, SMD 0603 (1608), 11.3 kΩ, 0.1 W, ±0.1 %, ERA3APB1132V
Brand: Panasonic
SKU: 83E3103
Price: 0.31 EUR
Availability: OutOfStock

Resistor, metal film, SMD 0603 (1608), 11.3 kΩ, 0.1 W, ±0.1 %, ERA3APB1132V

Order No.: 83E3103

EAN: 4099879228376

MPN:

ERA3APB1132V

Series: ERA3APB

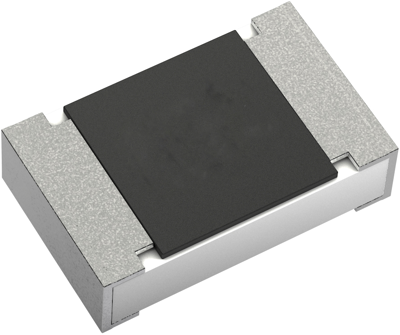

Image may differ

Key Specification:

ohmic resistance 11.3 kΩ

Tolerance ±0.1 %

Power 0.1 W

Design SMD 0603 (1608)

Show 267 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.3058 € *

Available: 0 pcs.

Leadtime: On Request **

Add to Cart

Total Price:

0.31 € *

*incl. VAT plus shipping costs

**Subject to prior sale

5000 pcs.

0.3058 €

Description

Technical specifications

Description

Metal Film Chip Resistor, ERA3APB1132V, Panasonic

Resistor, Metal film, SMD 0603, 11.3 kΩ, 0.1 W, ±0.1 %

Features

High reliability
High accuracy
High performance
RoHS-konform

Technical specifications

	ohmic resistance	11.3 kΩ
	Design	SMD 0603 (1608)
	Width	0.8 mm
	Height	0.45 mm
	Length	1.6 mm
	Power	0.1 W
	max. operating temperature	155 °C
	min. operating temperature	-55 °C
	Tolerance	±0.1 %
	Technology	metal film
	Temperature coefficient	±15 ppm/K

Show similar products 0

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	JP
Customs tariff number	85332100
Original Packaging	Reel with 5,000 pieces

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes
