RXLS200 | Panasonic
Triangulation light sensor, 0.05-0.2 m, NPN, 12-24 VDC, cable connection, IP67, RXLS200
Unit Price (€ / pc.)
210.6062 € *
Available: 0 pcs.
Leadtime: On Request **

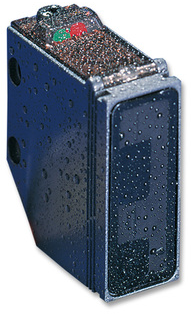

Panasonic triangulation light scanner RX-LS200, output NPN, scanning range 50 to 200mm, response time 1 ms, transmitter diode infrared, current consumption max. 40 mA, housing material zinc die-cast, protection class IP67, rated voltage 12-24 VDC, dimensions 35 x 14 x 35 mm, operating temperature -25 to 60° C
Technical specifications
| Connection | cable connection | |
| Activation time | 1 ms | |
| Version | triangulation light sensor | |
| Output | NPN | |
| Detecting distance | 0.05-0.2 m | |
| Switching logic | light ON/dark ON | |
| Degree of protection (IP) | IP67 | |
| Voltage | 12-24 VDC | |
| Power supply | 40 mA |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
