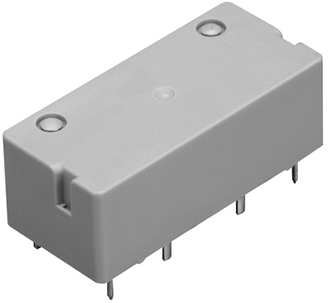

ST1L29FJ | Panasonic

Name: Relay, 1 Form A (N/O) + 1 Form B (N/C), 9 V (DC), 360 Ω, 8 A, 250 V (DC), 380 V (AC), ST1L29FJ
Brand: Panasonic
SKU: 34G9353
Availability: InStock

Relay, 1 Form A (N/O) + 1 Form B (N/C), 9 V (DC), 360 Ω, 8 A, 250 V (DC), 380 V (AC), ST1L29FJ

Order No.: 34G9353

EAN: 4099889410112

MPN:

ST1L29FJ

ST1-L2-DC9V-F

Series: ST1

Image may differ

Key Specification:

Contact type 1 Form A (N/O) + 1 Form B (N/C)

switching current 8 A

Coil voltage (DC) 9 V

Coil resistance 360 Ω

Show variants: 21

Download Datasheet Technical specifications

Unit Price (€ / pc.)

10.6505 € *

Standard delivery time from the manufacturer is: 13 Weeks

Total Price:

532.53 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Power relay, ST1L29FJ, PANASONIC

Features

Even with small form factor, sensitive enough for direct IC-driving
High breakdown voltage
High switching capability
Sockets for PC board and soldering

Technical specifications

Filter	Property	Value
	Coil voltage (DC)	9 V
	Switching Voltage (DC)	250 V
	Connection	PCB connection
	Contact material	AgSnO2
	switching current	8 A
	Coil resistance	360 Ω
	Switching Voltage (AC)	380 V
	Contact type	1 Form A (N/O) + 1 Form B (N/C)
