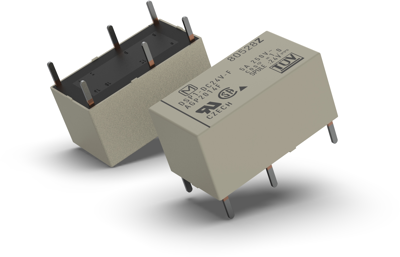

DSP1AL9D | Panasonic
Relay, 1 Form A (N/O), 9 V (DC), 270 Ω, 8 A, 125 V (DC), 250 V (AC), DSP1AL9D
Unit Price (€ / pc.)
7.2352 € *
Available: 0 pcs.
Leadtime: On Request **
Power relay, DSP1AL9D, PANASONIC
Features
- Compact with high contact rating
- High switching capacity
- High sensitivity
- High breakdown voltage
Applications
- Office and industrial electronic devices
- Terminal devices of information processing equipment, such as printer, data recorder
- Measuring instruments
- NC machines, temperature controllers and programmable logic controllers
Technical specifications
| Connection | PCB connection | |
| Contact type | 1 Form A (N/O) | |
| Contact material | AgSnO2 | |
| Switching Voltage (AC) | 250 V | |
| Switching Voltage (DC) | 125 V | |
| switching current | 8 A | |
| Coil voltage (DC) | 9 V | |
| Coil resistance | 270 Ω |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
