DE1AL25D | Panasonic

Relay, 1 Form A (N/O), 5 V (DC), 125 Ω, 10 A, 30 V (DC), 250 V (AC), bistable, DE1AL25D

Order No.: 30G6430
EAN: 4099889394979
MPN:
DE1AL25D
Series: DE1A

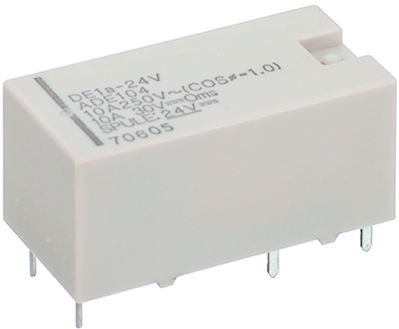

DE1AL25D Panasonic Industrial Relays Image 1
DE1AL25D Panasonic Industrial Relays Image 2
Image may differ
Unit Price (€ / pc.)
8.8536 € *
Standard delivery time from the manufacturer is: 15 Weeks
Total Price:
177.07 € *
Price list
Quantity
Price per unit*
20 pcs.
8.8536 €
60 pcs.
8.0920 €
100 pcs.
7.6041 €
*incl. VAT plus shipping costs
Subject to prior sale

Power relay, type Panasonic DE.

With high breaking capacity, compact design; Contact material: AgSnO2. Power consumption: max. 200 mW. Response/decay time: max. 10/5.0 ms. Ambient temperatures: –40 to +70 °C. Certifications: VDE, UL, CSA.

Bistable Relay, 2 coils and 1 NO contact, type DE.

Breaking capacity: 10 A/250 VAC, 10 A/30 VDC.

Technical attributes (type, rated voltage, coil resistance (±10 %)): DE1A-L2-5V, 5.0 VDC, 125 ohm

Technical specifications
Filter Property Value
Switching Voltage (AC) 250 V
Coil type bistable
switching current 10 A
Switching Voltage (DC) 30 V
Coil voltage (DC) 5 V
Connection PCB connection
Contact type 1 Form A (N/O)
Contact material AgSnO2
Coil resistance 125 Ω
Logistics
Property Value
Country of origin DE
Customs tariff number 85364900
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
