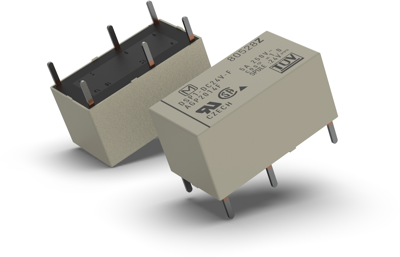

AGP2014F-K | Panasonic
Relay, 1 Form A (N/O) + 1 Form B (N/C), 24 V (DC), 1.92 kΩ, 5 A, 125 V (DC), 250 V (AC), monostable, AGP2014F-K
Unit Price (€ / pc.)
10.0436 € *
Available: 330 pcs.
Total Price:
10.04 € *
Price list
Quantity
Price per unit*
1 pcs.
10.0436 €
10 pcs.
9.3058 €
50 pcs.
8.7822 €
100 pcs.
8.2824 €
*incl. VAT plus shipping costs
Subject to prior sale
Power relay, type Panasonic DSP.
Compact design, with high breaking capacity, sealed, monostable or bistable; Contact type: 1 NO, 2 NO, or 1 NO + 1 NC. Contact material: AgSnO2. Switching voltage: max. 250 VAC/30 VDC. Contact resistance: max. 30 mohm. Breakdown voltage contact/coil: 3000 VRMS. Pick-up/release time: max. 10/10 ms. Ambient temperatures: –40 to +65 °C. Certifications: TÜV, UL, CSA.
Monostable Relay, 1 NO + 1 NC, type DSP1-.
Switching current: max. 5.0 AUC. Breaking capacity: max. 150 W/1250 VA. Coil power: 300 mW.
Technical attributes (type, rated voltage, coil resistance (±10 %)): DSP1-24V-F, 24 VDC, 1920 ohm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | 1 Form A (N/O) + 1 Form B (N/C) | |
| switching current | 5 A | |
| Coil voltage (DC) | 24 V | |
| Coil resistance | 1.92 kΩ | |
| Switching Voltage (DC) | 125 V | |
| Switching Voltage (AC) | 250 V | |
| Connection | PCB connection | |
| Coil type | monostable | |
| Contact material | AgSnO2 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
