ADW1109HTW | Panasonic

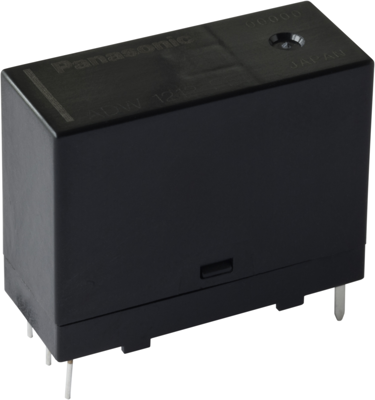

Name: Relay, 1 Form A (N/O), 9 V (DC), 405 Ω, 16 A, 277 V (AC), monostable, ADW1109HTW
Brand: Panasonic
SKU: 34G4630
Price: 5.16 EUR
Availability: OutOfStock

Relay, 1 Form A (N/O), 9 V (DC), 405 Ω, 16 A, 277 V (AC), monostable, ADW1109HTW

Order No.: 34G4630

EAN: 4099889398854

MPN:

ADW1109HTW

Series: DW

Image may differ

Key Specification:

Contact type 1 Form A (N/O)

switching current 16 A

Coil voltage (DC) 9 V

Coil resistance 405 Ω

Show 30 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

5.1646 € *

Available: 0 pcs.

Leadtime: On Request **

Add to Cart

Total Price:

5.16 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Power-Relay, ADW1109HTW, Panasonic

Power-Relay, 1-Form-A, 1 coil latching, 16A-Inrush type

Features

Low profile type available (h = 15.8 mm .622 inch)
Inrush type available (TV-8 UL/C-UL approved)
IEC60335-1 compliant type available (PTI 325V VDE approved)
Reflow possible (pin-in-paste)
Certified by UL/C-UL, VDE

Applications

Lighting control equipment
Smart meters
Industrial equipment
Security equipment
Home appliances
Various power supplies

Technical specifications

	Connection	PCB connection
	Contact type	1 Form A (N/O)
	Contact material	AgSnO2
	Switching Voltage (AC)	277 V
	switching current	16 A
	Coil voltage (DC)	9 V
	Coil type	monostable
	Coil resistance	405 Ω

Show similar products 0

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Declaration of Conformity - DE Declaration of Conformity

Logistics
