AXN380C130SJ | Panasonic

Name: Connector, 80 pole, 2 rows, pitch 0.8 mm, SMD, socket, gold-plated, AXN380C130SJ
Brand: Panasonic
SKU: 34G7459
Price: 4.21 EUR
Availability: OutOfStock

Connector, 80 pole, 2 rows, pitch 0.8 mm, SMD, socket, gold-plated, AXN380C130SJ

Order No.: 34G7459

EAN: 4099891027056

MPN:

AXN380C130SJ

AXN380C130S

Series: P8

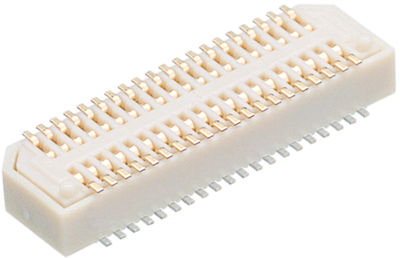

Image may differ

Key Specification:

Pin number 80 pole

Number of rows 2

Grid 0.8 mm

Connection SMD

Version socket

Show 67 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

4.2126 € *

Available: 0 pcs.

Leadtime: On Request **

Add to Cart

Total Price:

4.21 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Connector, P8, Socket, 0.80mm pitch, 80 contacts

Technical specifications

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	JP
Customs tariff number	85366990

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes
