EEUFC1V221B | Panasonic

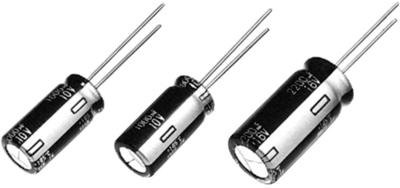

Electrolytic capacitor, 220 µF, 35 V (DC), ±20 %, radial, pitch 5 mm, Ø 10 mm

Panasonic
default L
front L
default S
front S
Images may differ
Order No.:  38D2202
Manufacturer:  Panasonic
Manufacturer SKU: EEUFC1V221B
Manufacturer series:  FC-A
EAN: 4099879875143
about the green icons

Product highlights

  • Low ESR

Total price
( 0.6545 € * / pcs.)
6.55 €
Available: 2,160 pcs.
Leadtime
Quantity
Price per unit*
10 pcs.
0.6545 €
50 pcs.
0.5712 €
250 pcs.
0.4879 €
1000 pcs.
0.4403 €
2000 pcs.
0.3927 €
*incl. VAT plus shipping costs
Show 4 variants
Description
Technical specifications
Logistics
Compliance
Download
Variations
Description

Electrolytic capacitor, EEUFC1V221B, PANASONIC

Aluminum electrolytic capacitor

Features

  • Low impedance
  • High rated capacitance
  • RoHS-compatible
  • Long useful life

Applications

  • Automotive electronics
  • Audio signal circuits
  • Optical equipment
  • Measuring equipment
Technical specifications
Version polar
Design radial
diameter 10 mm
ESR (Equivalent Series Resistance) 90 mΩ
Capacity 220 µF
Length 12.5 mm
max. operating temperature 105 °C
min. operating temperature -55 °C
Rated voltage (DC) 35 V
Grid 5 mm
Ripple current 755 mA
Tolerance ±20 %
Show similar products (0)
Logistics
Country of origin MY
Customs tariff number 85322200
Original Packaging Reel with 500 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
diameter
Unit
Length
Unit
Grid
Unit
Capacity
Unit
Ripple current
Unit
Design
Version
Tolerance
min. operating temperature
Rated voltage (DC)
Unit
max. operating temperature
Search results: 1 item in 4 variations
*incl. VAT plus shipping costs
Item description
Total
Price list
Availability
diameter
Length
Grid
Capacity
Ripple current
Design
Version
Tolerance
min. operating temperature
Rated voltage (DC)
max. operating temperature
Electrolytic capacitor, 220 µF, 35 V (DC), ±20 %, radial, pitch 5 mm, Ø 10 mm
Electrolytic capacitor, 220 µF, 35 V (DC), ±20 %, radial, pitch 5 mm, Ø 10 mm
Order No.:
 38D2202
Manufacturer:
 Panasonic
Manufacturer SKU:
 EEUFC1V221B
6.55 € *
10 pcs.
0.6545 €
50 pcs.
0.5712 €
250 pcs.
0.4879 €
1000 pcs.
0.4403 €
2000 pcs.
0.3927 €
Available: 2,160 pcs.
Leadtime
10 mm
12.5 mm
5 mm
220 µF
755 mA
radial
polar
±20 %
-55 °C
35 V
105 °C
Electrolytic capacitor, 47 µF, 35 V (DC), ±20 %, radial, pitch 2.5 mm, Ø 6.3 mm
Electrolytic capacitor, 47 µF, 35 V (DC), ±20 %, radial, pitch 2.5 mm, Ø 6.3 mm
Order No.:
 38D2228
Manufacturer:
 Panasonic
Manufacturer SKU:
 EEUFC1V470
5.24 € *
10 pcs.
0.5236 €
50 pcs.
0.3570 €
250 pcs.
0.2713 €
1000 pcs.
0.2202 €
2000 pcs.
0.1916 €
Available: 110 pcs.
Leadtime
6.3 mm
11.2 mm
2.5 mm
47 µF
290 mA
radial
polar
±20 %
-55 °C
35 V
105 °C
Electrolytic capacitor, 150 µF, 35 V (DC), ±20 %, radial, pitch 3.5 mm, Ø 8 mm
Electrolytic capacitor, 150 µF, 35 V (DC), ±20 %, radial, pitch 3.5 mm, Ø 8 mm
Order No.:
 38D2184
Manufacturer:
 Panasonic
Manufacturer SKU:
 EEUFC1V151
6.31 € *
10 pcs.
0.6307 €
50 pcs.
0.4760 €
250 pcs.
0.3689 €
1000 pcs.
0.3213 €
2000 pcs.
0.2820 €
Available: 90 pcs.
Leadtime
8 mm
11.5 mm
3.5 mm
150 µF
555 mA
radial
polar
±20 %
-55 °C
35 V
105 °C
Electrolytic capacitor, 22 µF, 35 V (DC), ±20 %, radial, pitch 2 mm, Ø 5 mm
Electrolytic capacitor, 22 µF, 35 V (DC), ±20 %, radial, pitch 2 mm, Ø 5 mm
Order No.:
 38D2198
Manufacturer:
 Panasonic
Manufacturer SKU:
 EEUFC1V220
0.30 € *
4000 pcs.
0.3011 €
Available: 0 pcs.
Leadtime
5 mm
11 mm
2 mm
22 µF
175 mA
radial
polar
±20 %
-55 °C
35 V
105 °C
