EEEHD1A682AV | Panasonic
Electrolytic capacitor, 6800 µF, 10 V (DC), ±20 %, SMD, Ø 18 mm, EEEHD1A682AV
Unit Price (€ / pc.)
1.6517 € *
Available: 0 pcs.
Leadtime: On Request **

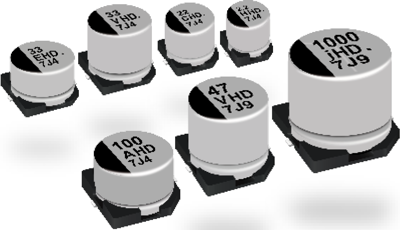

Electrolytic capacitor, EEEHD1A682AV, Panasonic
Surface mount aluminum electrolytic capacitor is used in electronic applications for it's compact size and high capacitance value.
Features
- AEC-Q200 compliant
- RoHS compliant
Technical specifications
| Rated voltage (DC) | 10 V | |
| Capacity | 6800 µF | |
| diameter | 18 mm | |
| Length | 16.5 mm | |
| Version | polar | |
| Design | SMD | |
| min. operating temperature | -55 °C | |
| Tolerance | ±20 % | |
| max. operating temperature | 105 °C | |
| Ripple current | 1540 mA |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85322200 |
| Original Packaging | Reel with 125 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
