EEEHB1H470AV | Panasonic

Electrolytic capacitor, 47 µF, 50 V (DC), ±20 %, SMD, Ø 10 mm, EEEHB1H470AV

Order No.: 38D5706
EAN: 4099891906399
MPN:
EEEHB1H470AV
Series: HB
EEEHB1H470AV Panasonic Electrolytic Capacitors

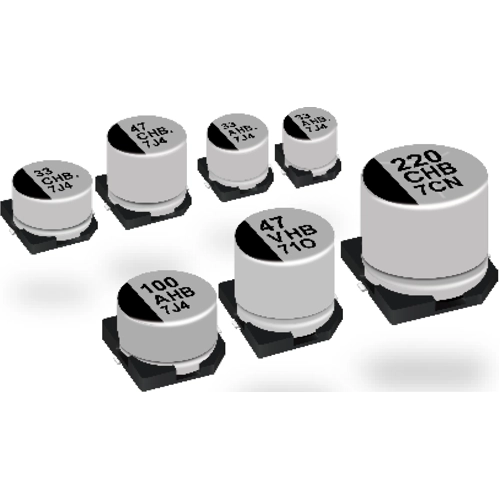

Image may differ
Unit Price (€ / pc.)
0.7628 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
381.40 € *
*incl. VAT plus shipping costs
Subject to prior sale
500 pcs.
0.7628 €

Electrolytic capacitor, EEEHB1H470AV, Panasonic

Surface mount aluminum electrolytic capacitor is used in electronic applications for it's compact size and high capacitance value.

Features

  • AEC-Q200 compliant
  • RoHS compliant
Technical specifications
Filter Property Value
Rated voltage (DC) 50 V
Capacity 47 µF
Length 10.2 mm
Design SMD
Version polar
diameter 10 mm
max. operating temperature 105 °C
min. operating temperature -40 °C
Tolerance ±20 %
Ripple current 100 mA
Logistics
Property Value
Customs tariff number 85322200
Original Packaging Reel with 500 pieces
Country of origin JP
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
