EEEFN1V470L | Panasonic

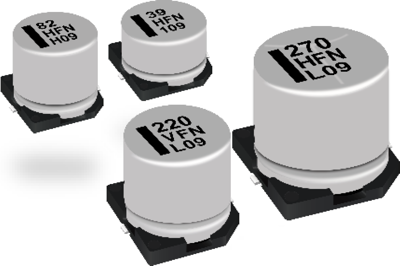

Electrolytic capacitor, 47 µF, 35 V (DC), SMD, Ø 6.3 mm

Order No.: 38D5314
EAN: 4099891915643
MPN:
EEEFN1V470L
Series: FN
Panasonic
default L
Image may differ
Print
Key Specification:
Version polar
Capacity 47 µF
Rated voltage (DC) 35 V
Show 27 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
0.1809 € *
Available: 0 pcs.
Leadtime: On Request **
Add to Cart
Total Price:
0.18 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1000 pcs.
0.1809 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

Electrolytic capacitor, EEEFN1V470L, Panasonic

Surface mount aluminum electrolytic capacitor is used in electronic applications for it's compact size and high capacitance value.

Features

  • High capacitance
  • AEC-Q200 compliant
  • RoHS compliant
Technical specifications
Version polar
Design SMD
diameter 6.3 mm
ESR (Equivalent Series Resistance) 0.36 Ω
Capacity 47 µF
Length 5.8 mm
max. operating temperature 105 °C
min. operating temperature -55 °C
Rated voltage (DC) 35 V
Ripple current 240 mA
Show similar products 0
Logistics
Country of origin MY
Original Packaging Reel with 1,000 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
1 item in 27 variations
*incl. VAT plus shipping costs
Item description
Total
diameter
Length
Capacity
Ripple current
Design
Version
min. operating temperature
Rated voltage (DC)
max. operating temperature
Electrolytic capacitor, 68 µF, 35 V (DC), SMD, Ø 6.3 mm
Manufacturer SKU:
 EEEFN1V680UL
1000 pcs. 0.1952 €
0.1952 €
0 pcs.
0.20 € *
6.3 mm
5.8 mm
68 µF
240 mA
SMD
polar
-55 °C
35 V
105 °C
Electrolytic capacitor, 470 µF, 35 V (DC), SMD, Ø 10 mm
Manufacturer SKU:
 EEEFN1V471UP
500 pcs. 0.4784 €
0.4784 €
0 pcs.
0.48 € *
10 mm
10.2 mm
470 µF
850 mA
SMD
polar
-55 °C
35 V
105 °C
Electrolytic capacitor, 220 µF, 35 V (DC), SMD, Ø 8 mm
Manufacturer SKU:
 EEEFN1V221L
500 pcs. 0.3796 €
0.3796 €
0 pcs.
0.38 € *
8 mm
10.2 mm
220 µF
600 mA
SMD
polar
-55 °C
35 V
105 °C
Electrolytic capacitor, 220 µF, 35 V (DC), SMD, Ø 8 mm
Manufacturer SKU:
 EEEFN1V221P
500 pcs. 0.3618 €
0.3618 €
0 pcs.
0.36 € *
8 mm
10.2 mm
220 µF
600 mA
SMD
polar
-55 °C
35 V
105 °C
Electrolytic capacitor, 39 µF, 35 V (DC), SMD, Ø 5 mm
Manufacturer SKU:
 EEEFN1V390UR
1000 pcs. 0.1607 €
0.1607 €
0 pcs.
0.16 € *
5 mm
5.8 mm
39 µF
160 mA
SMD
polar
-55 °C
35 V
105 °C
Electrolytic capacitor, 470 µF, 35 V (DC), SMD, Ø 10 mm
Manufacturer SKU:
 EEEFN1V471UL
500 pcs. 0.5022 €
0.5022 €
0 pcs.
0.50 € *
10 mm
10.2 mm
470 µF
850 mA
SMD
polar
-55 °C
35 V
105 °C
Electrolytic capacitor, 100 µF, 35 V (DC), SMD, Ø 6.3 mm
Manufacturer SKU:
 EEEFN1V101XP
1 pcs. 0.4367 €
10 pcs. 0.2916 €
100 pcs. 0.2428 €
500 pcs. 0.2106 €
1000 pcs. 0.1916 €
0.4367 € - 0.1916 €
0 pcs.
900 pcs.
0.44 € *
6.3 mm
7.7 mm
100 µF
280 mA
SMD
polar
-55 °C
35 V
105 °C
Electrolytic capacitor, 33 µF, 35 V (DC), SMD, Ø 5 mm
Manufacturer SKU:
 EEEFN1V330R
1000 pcs. 0.1607 €
0.1607 €
0 pcs.
0.16 € *
5 mm
5.8 mm
33 µF
160 mA
SMD
polar
-55 °C
35 V
105 °C
Electrolytic capacitor, 82 µF, 35 V (DC), SMD, Ø 6.3 mm
Manufacturer SKU:
 EEEFN1V820UL
1000 pcs. 0.1952 €
0.1952 €
0 pcs.
0.20 € *
6.3 mm
5.8 mm
82 µF
240 mA
SMD
polar
-55 °C
35 V
105 °C
Electrolytic capacitor, 22 µF, 35 V (DC), SMD, Ø 5 mm
Manufacturer SKU:
 EEEFN1V220R
1 pcs. 0.3391 €
10 pcs. 0.2261 €
100 pcs. 0.1880 €
500 pcs. 0.1642 €
1000 pcs. 0.1488 €
0.3391 € - 0.1488 €
0 pcs.
1,000 pcs.
0.34 € *
5 mm
5.8 mm
22 µF
160 mA
SMD
polar
-55 °C
35 V
105 °C
Electrolytic capacitor, 10 µF, 35 V (DC), SMD, Ø 4 mm
Manufacturer SKU:
 EEEFN1V100R
2000 pcs. 0.1273 €
0.1273 €
0 pcs.
0.13 € *
4 mm
5.8 mm
10 µF
90 mA
SMD
polar
-55 °C
35 V
105 °C
Electrolytic capacitor, 120 µF, 35 V (DC), SMD, Ø 6.3 mm
Manufacturer SKU:
 EEEFNV121XUP
900 pcs. 0.2106 €
0.2106 €
0 pcs.
0.21 € *
6.3 mm
7.7 mm
120 µF
280 mA
SMD
polar
-55 °C
35 V
105 °C
Electrolytic capacitor, 560 µF, 35 V (DC), SMD, Ø 10 mm
Manufacturer SKU:
 EEEFN1V561UL
500 pcs. 0.5022 €
0.5022 €
0 pcs.
0.50 € *
10 mm
10.2 mm
560 µF
850 mA
SMD
polar
-55 °C
35 V
105 °C
Electrolytic capacitor, 100 µF, 35 V (DC), SMD, Ø 6.3 mm
Manufacturer SKU:
 EEEFN1V101XL
900 pcs. 0.2011 €
0.2011 €
0 pcs.
0.20 € *
6.3 mm
7.7 mm
100 µF
280 mA
SMD
polar
-55 °C
35 V
105 °C
Electrolytic capacitor, 47 µF, 35 V (DC), SMD, Ø 6.3 mm
Manufacturer SKU:
 EEEFN1V470P
1 pcs. 0.3856 €
10 pcs. 0.2570 €
100 pcs. 0.2142 €
500 pcs. 0.1868 €
1000 pcs. 0.1690 €
0.3856 € - 0.1690 €
0 pcs.
1,000 pcs.
0.39 € *
6.3 mm
5.8 mm
47 µF
240 mA
SMD
polar
-55 °C
35 V
105 °C
Electrolytic capacitor, 330 µF, 35 V (DC), SMD, Ø 8 mm
Manufacturer SKU:
 EEEFN1V331UL
500 pcs. 0.4177 €
0.4177 €
0 pcs.
0.42 € *
8 mm
10.2 mm
330 µF
600 mA
SMD
polar
-55 °C
35 V
105 °C
Electrolytic capacitor, 150 µF, 35 V (DC), SMD, Ø 8 mm
Manufacturer SKU:
 EEEFN1V151L
500 pcs. 0.3796 €
0.3796 €
0 pcs.
0.38 € *
8 mm
10.2 mm
150 µF
600 mA
SMD
polar
-55 °C
35 V
105 °C
Electrolytic capacitor, 270 µF, 35 V (DC), SMD, Ø 8 mm
Manufacturer SKU:
 EEEFN1V271UL
500 pcs. 0.4177 €
0.4177 €
0 pcs.
0.42 € *
8 mm
10.2 mm
270 µF
600 mA
SMD
polar
-55 °C
35 V
105 °C
Electrolytic capacitor, 560 µF, 35 V (DC), SMD, Ø 10 mm
Manufacturer SKU:
 EEEFN1V561UP
1 pcs. 1.0889 €
10 pcs. 0.7259 €
100 pcs. 0.6045 €
500 pcs. 0.5260 €
1000 pcs. 0.4784 €
1.0889 € - 0.4784 €
0 pcs.
500 pcs.
1.09 € *
10 mm
10.2 mm
560 µF
850 mA
SMD
polar
-55 °C
35 V
105 °C
Electrolytic capacitor, 68 µF, 35 V (DC), SMD, Ø 6.3 mm
Manufacturer SKU:
 EEEFN1V680UP
1000 pcs. 0.1856 €
0.1856 €
0 pcs.
0.19 € *
6.3 mm
5.8 mm
68 µF
240 mA
SMD
polar
-55 °C
35 V
105 °C
