EEEFN0J330R | Panasonic
Electrolytic capacitor, 33 µF, 6.3 V (DC), SMD, Ø 4 mm, EEEFN0J330R
Unit Price (€ / pc.)
0.2904 € *
Available: 2,000 pcs.
Total Price:
0.29 € *
Price list
Quantity
Price per unit*
1 pcs.
0.2904 €
10 pcs.
0.1940 €
100 pcs.
0.1607 €
500 pcs.
0.1404 €
1000 pcs.
0.1273 €
*incl. VAT plus shipping costs
Subject to prior sale

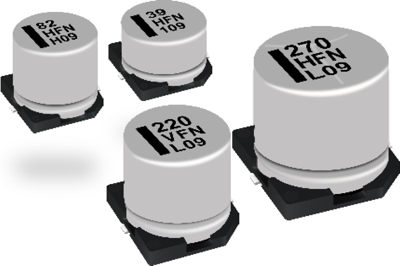

Electrolytic capacitor, EEEFN0J330R, Panasonic
Surface mount aluminum electrolytic capacitor is used in electronic applications for it's compact size and high capacitance value.
Features
- High capacitance
- AEC-Q200 compliant
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Capacity | 33 µF | |
| diameter | 4 mm | |
| max. operating temperature | 105 °C | |
| Length | 5.8 mm | |
| min. operating temperature | -55 °C | |
| Ripple current | 90 mA | |
| Design | SMD | |
| ESR (Equivalent Series Resistance) | 1.35 Ω | |
| Version | polar | |
| Rated voltage (DC) | 6.3 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Original Packaging | Reel with 2,000 pieces |
| Country of origin | MY |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
