EEEFK1H331AQ | Panasonic
Electrolytic capacitor, 330 µF, 50 V (DC), ±20 %, SMD, Ø 12.5 mm
Unit Price (€ / pc.)
2.3134 € *
Available: 0 pcs.
Next delivery: 200 pcs. on 2024-08-26
Leadtime: On Request **
Total Price:
2.31 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3134 €
10 pcs.
1.5422 €
100 pcs.
1.2852 €
500 pcs.
1.1174 €
1000 pcs.
1.0163 €
*incl. VAT plus shipping costs
**Subject to prior sale

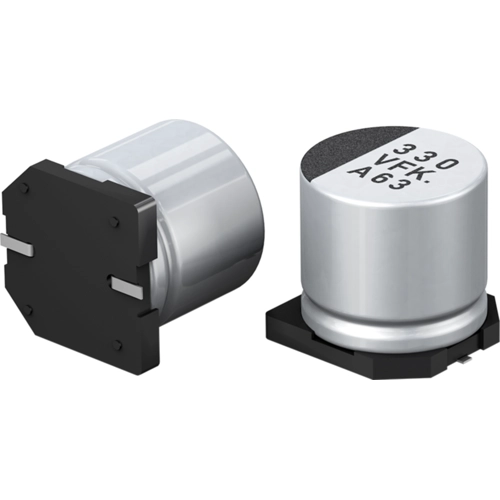

Electrolytic capacitor, EEEFK1H331AQ, Panasonic
Surface mount aluminum electrolytic capacitor is used in electronic applications for it's compact size and high capacitance value.
Features
- AEC-Q200 compliant
- RoHS compliant
Technical specifications
| Version | polar | |
| Design | SMD | |
| diameter | 12.5 mm | |
| Capacity | 330 µF | |
| Length | 13.5 mm | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -55 °C | |
| Rated voltage (DC) | 50 V | |
| Ripple current | 900 mA | |
| Tolerance | ±20 % |
Download
Logistics
| Country of origin | MY |
| Customs tariff number | 85322200 |
| Original Packaging | Reel with 200 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
