EEEFK0J152AV | Panasonic
Electrolytic capacitor, 1500 µF, 6.3 V (DC), ±20 %, SMD, Ø 10 mm, EEEFK0J152AV
Unit Price (€ / pc.)
0.8889 € *
Standard delivery time from the manufacturer is: On Request

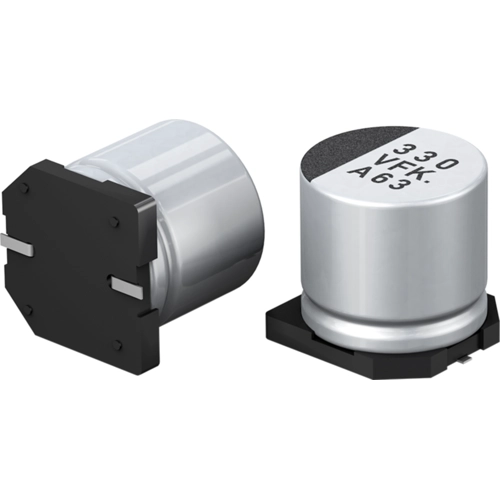

Electrolytic capacitor, EEEFK0J152AV, Panasonic
Surface mount aluminum electrolytic capacitor is used in electronic applications for it's compact size and high capacitance value.
Features
- Low impedance
- Miniaturized#
- AEC-Q200 compliant
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Ripple current | 850 mA | |
| Rated voltage (DC) | 6.3 V | |
| Tolerance | ±20 % | |
| Design | SMD | |
| diameter | 10 mm | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -55 °C | |
| Version | polar | |
| Length | 10.5 mm | |
| Capacity | 1500 µF |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Country of origin | JP |
| Original Packaging | Reel with 500 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
