DP-002-P | Panasonic

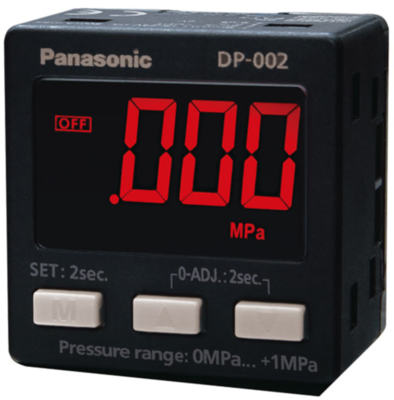

Panasonic pressure gauge, DP-002-P
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
112.5859 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
112.59 € *
Price list
Quantity
Price per unit*
1 pcs.
112.5859 €
5 pcs.
105.0889 €
*incl. VAT plus shipping costs
Subject to prior sale
Pressure measuring instrument, 0 to 10b ar, Output: PNP, Pressure connection M5 Internal threads, Plug-in connection, inkl. cable 2 m (CN14AC2), Rated voltage: 12 to 24 VDC, Protection: IP 40, Response time: 2,5 ms
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | pressure gauge | |
| Version | for gas | |
| Resolution | 0.1 to 146.5 psi, 0.1 to 10.1 bar | |
| measurement range | 0 to 1000 Mpa | |
| Accuracy | ±0.4 % | |
| min. operating temperature | -10 °C | |
| max. operating temperature | 60 °C | |
| Relative Humidity Range | 35 % to 85 % | |
| Degree of protection (IP) | IP40 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Customs tariff number | 90262020 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
