LW E67C-U2V2-5K8L-1-Z | Osram Opto Semi

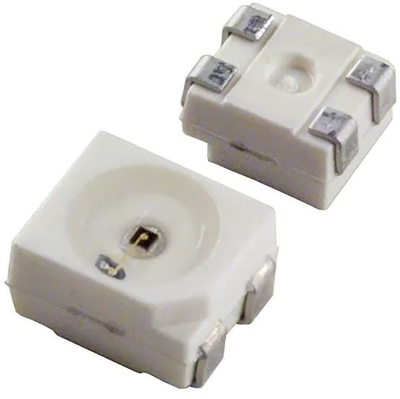

LED, SMD, PLCC-4, white, 0.84 cd, 120°, LW E67C-U2V2-5K8L-1-Z
Top LED, LW E67C-U2V2-5K8L-1-Z, Osram Opto Semi
The LW E67C-U2V2-5K8L-1-Z is a power TOPLED with high luminous efficacy, the LED is ideal for rear light clusters and indicators on vehicles and for display panels for traffic control systems.
Applications
- Static signaling
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | SMD | |
| Enclosure | PLCC-4 | |
| Number of LEDs | 1 | |
| Colour of the LED | white | |
| Light intensity typ. | 0.84 cd | |
| Radiation angle | 120 ° | |
| Lens | yellow | |
| On-State Voltage | 4.35 V | |
| Forward Current | 30 mA | |
| Length | 3.2 mm | |
| Width | 2.8 mm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 100 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85414100 |
| Country of origin | MY |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
