LS E67B-T2V1-1-Z | Osram Opto Semi
LED, SMD, PLCC-4, Ø 2.4 mm, red, 633 nm, 360 mcd to 0.9 cd, 120°, LS E67B-T2V1-1-Z
Unit Price (€ / pc.)
0.1321 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
3.30 € *
Price list
Quantity
Price per unit*
25 pcs.
0.1321 €
125 pcs.
0.1178 €
500 pcs.
0.1059 €
2000 pcs.
0.0976 €
5000 pcs.
0.0881 €
*incl. VAT plus shipping costs
Subject to prior sale

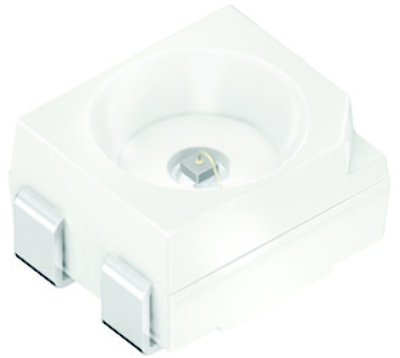

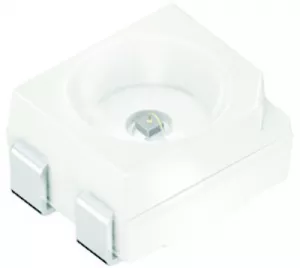

Power topLED, LS E67B-T2V1-1-Z, Osram Opto Semi
The LS E67B-T2V1-1-Z is a power TOPLED with high luminous efficacy, the LED is ideal for rear light clusters and indicators on vehicles and for display panels for traffic control systems.
Applications
- Automotive aftermarket
- Static signaling
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | SMD | |
| Enclosure | PLCC-4 | |
| Number of LEDs | 1 | |
| Colour of the LED | red | |
| Light intensity min. | 0.36 cd | |
| Light intensity typ. | 0.9 cd | |
| Radiation angle | 120 ° | |
| Lens | clear | |
| On-State Voltage | 2.1 V | |
| Forward Current | 70 mA | |
| Wavelength | 633 nm | |
| Length | 3.2 mm | |
| Width | 2.8 mm | |
| diameter | 2.4 mm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 100 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85414100 |
| Country of origin | MY |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
