NSVRB751S40T1G | onsemi

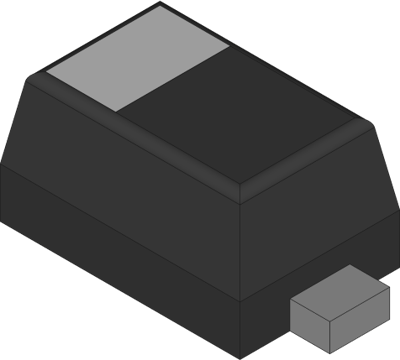

Schottky rectifier diode, 40 V (RRM), 30 mA, SOD-523, NSVRB751S40T1G
Unit Price (€ / pc.)
0.0417 € *
Standard delivery time from the manufacturer is: 8 Weeks
Diode, NSVRB751S40T1G, ON Semiconductor
These Schottky barrier diodes are designed for high−speed switching applications, circuit protection, and voltage clamping. Extremely low forward voltage reduces conduction loss. Miniature surface mount package is excellent for hand−held and portable applications where space is limited.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | schottky rectifier diode | |
| Forward Current | 30 mA | |
| Number of diodes | 1 | |
| min. operating temperature | -55 °C | |
| Junction temperature (max.) | 150 °C | |
| max. operating temperature | 150 °C | |
| Junction temperature (min.) | -55 °C | |
| Voltage V RRM (peak reverse voltage) | 40 V | |
| Enclosure | SOD-523 | |
| Capacity | 2.5 pF | |
| Assembly | SMD |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 3,000 pieces |
| Customs tariff number | 85411000 |
| Country of origin | CN |
