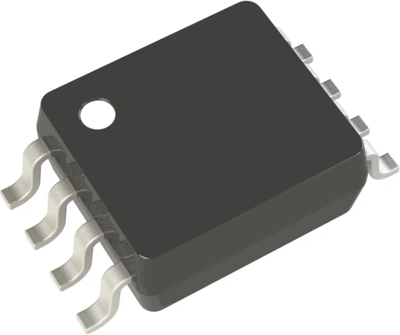

N24C64UDTG | onsemi

EEPROM memory, N24C64UDTG, onsemi

The N24C64UDTG is a EEPROM Serial 64-Kb I²C device, organizedinternally as 256 pages of 32 bytes each. This device supports theStandard (100 kHz), Fast (400 kHz) and Fast-Plus (1 MHz) I²Cprotocol. Data is written by providing a starting address, then loading 1 to 32contiguous bytes into a Page Write Buffer, and then writing all data tonon-volatile memory in one internal write cycle. Data is read byproviding a starting address and then shifting out data serially whileautomatically incrementing the internal address count.

Features

• Fast Write Time (4 ms max)
• User Programmable Permanent Write ProtectionHardware Write Protection for Entire Memory
• Schmitt Triggers and Noise Suppression Filters on I²C Bus Inputs
• Low Power CMOS Technology
• Industrial and Automotive Grade 1 Temperature Range

Applications

• Parameters and Configuration Non-Volatile Storage
• Data and Code Storage
• Automotive Systems
• Modems / Wireless LANs
• Industrial Controls
