CAT24C16HU4I-GT3 | onsemi

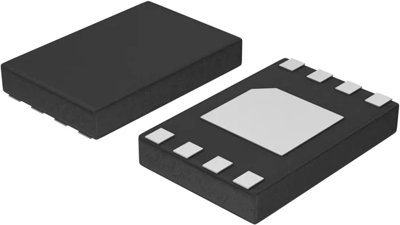

EEPROM memory, CAT24C16HU4I-GT3, onsemi

The CAT24C16HU4I-GT3 is a EEPROM Serial 8-Kb I²C device organized internally as 128 pages of 16 bytes each. This device support both the Standard (100 kHz) as well as Fast (400 kHz) I²C protocol. Data is written by providing a starting address, then loading 1 to 16 contiguous bytes into a Page Write Buffer, and then writing all data to non-volatile memory in one internal write cycle. Data is read by providing a starting address and then shifting out data serially while automatically incrementing the internal address count.

Features

• Hardware Write Protection for Entire Memory
• Schmitt Triggers and Noise Suppression Filters on I²C Bus Inputs
• Low power CMOS Technology
• Industrial and Extended Temperature Range

Applications

• Alarm Systems
• Digital Still Cameras
• Hard Disk Drives
• Industrial Controls
• Notebook PC
• Video Tape Recorder
• Vending Machines
