TIP142G | onsemi

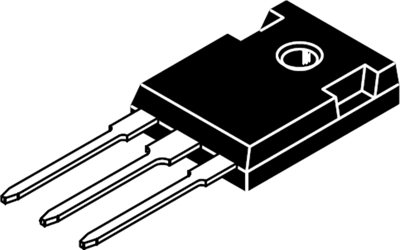

Bipolar junction transistor, NPN, 10 A, 100 V, THT, TO-247, TIP142G
Unit Price (€ / pc.)
1.3566 € *
Standard delivery time from the manufacturer is: 10 Weeks
Complementary transistor, TIP142G, onsemi
This complementary silicon transistor is designed as general-purpose amplifier and for low frequency switching applications.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Collector current | 10 A | |
| Assembly | THT | |
| Min DC gain | 500 mA | |
| Version | NPN | |
| Saturation voltage | 3 V | |
| max.voltage between collector and base Vcbo | 100 V | |
| max. operating temperature | 150 °C | |
| max.voltage between collector and emitter Vceo | 100 V | |
| Transit frequency fTmin | 4 MHz | |
| Enclosure | TO-247 | |
| Power dissipation | 125 W | |
| min. operating temperature | -65 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85412900 |
| Original Packaging | Bar with 30 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
