TIP120G | onsemi

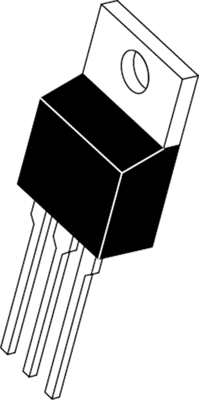

Bipolar junction transistor, NPN, 5 A, 60 V, THT, TO-220, TIP120G
Unit Price (€ / pc.)
0.3808 € *
Standard delivery time from the manufacturer is: 10 Weeks
Complementary transistor, TIP120G, onsemi
This complementary silicon transistor is designed as general-purpose amplifier and for low speed switching applications.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Transit frequency fTmin | 4 MHz | |
| max. operating temperature | 150 °C | |
| Saturation voltage | 4 V | |
| Min DC gain | 1000 mA | |
| Assembly | THT | |
| max.voltage between collector and emitter Vceo | 60 V | |
| min. operating temperature | -65 °C | |
| max.voltage between collector and base Vcbo | 60 V | |
| Power dissipation | 65 W | |
| Enclosure | TO-220 | |
| Collector current | 5 A | |
| Version | NPN |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bar with 50 pieces |
| Customs tariff number | 85412900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
