G6E-134P-US 5VDC | Omron
Relay, 1 Form C (NO/NC), 5 V (DC), 125 Ω, 3 A, 220 V (DC), 250 V (AC), monostable, G6E-134P-US 5VDC
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
4.3673 € *
Available: 485 pcs.
Total Price:
4.37 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3673 €
10 pcs.
3.8318 €
100 pcs.
3.3677 €
250 pcs.
3.2368 €
1000 pcs.
3.0345 €
*incl. VAT plus shipping costs
Subject to prior sale

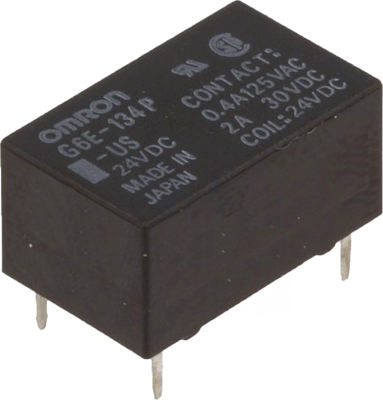

SubMiniature signal relay, type Omron G6E.
High impulse strength, sealed, monostable or bistable; Contact type: 1 CO. Contact material: gold-plated silver. Switching voltage: max. 250 VAC/220 VDC. Switching current: max. 3.0 A. Breaking capacity: max. 50 VA/60 W. Contact resistance: max. 50 mohm. Coil power: 200 mW. Coil/contact dielectric strength: 1500 VAC (60 s). Response/release time: max. 5.0/5.0 ms. Ambient temperatures: –40 to +70 °C. Certifications: UL, CSA.
Monostable Relay, type G6E-.
Technical attributes (type, rated voltage, coil resistance (±10 %)): G6E-134 P-US 5VDC, 5.0 VDC, 125 ohm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | 1 Form C (NO/NC) | |
| switching current | 3 A | |
| Coil voltage (DC) | 5 V | |
| Coil resistance | 125 Ω | |
| Switching Voltage (DC) | 220 V | |
| Switching Voltage (AC) | 250 V | |
| Connection | PCB connection | |
| Coil type | monostable | |
| Contact material | Ag |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
