G5NB-1A-E 5VDC | Omron
Relay, 1 Form A (N/O), 5 V (DC), 125 Ω, 5 A, 30 V (DC), 250 V (AC), G5NB-1A-E 5VDC
Unit Price (€ / pc.)
1.6541 € *
Available: 367 pcs.
Total Price:
1.65 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6541 €
25 pcs.
1.4042 €
100 pcs.
1.2971 €
250 pcs.
1.2376 €
1000 pcs.
1.1305 €
*incl. VAT plus shipping costs
Subject to prior sale

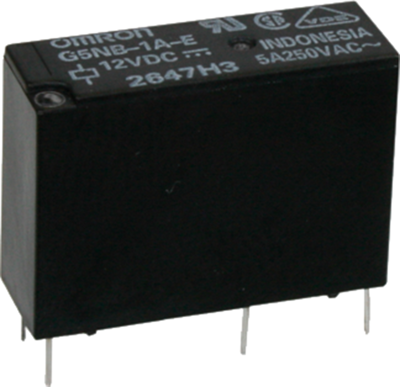

Miniature Power relay, type Omron G5NB-E.
Slim-line, flux-proof, high sensitivity, 10 kV surge voltage strength coil/contacts; Contact type: 1 x NO. Contact material: AgNi. Rated load (resistance load): 5.0 A/250 VAC, 3.0 A/30 VDC. Switching voltage: max. 250 VAC/30 VDC. Switching current: max. 5.0 A. Breaking capacity: max. 1250 W/90 W. Contact resistance: max. 100 mohm. Rated coil power: approx. 200 mW. Dielectric strength coil/contact: 4000 VAC (60 s). Response/release time: max. 10/10 ms. Ambient temperatures: –40 to +85 °C. Certifications: VDE, UL, CSA.
Technical attributes (type, rated coil voltage, coil resistance (±10 %)): G5NB-1A-E 5VDC, 5.0 VDC, 125 ohm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | 1 Form A (N/O) | |
| switching current | 5 A | |
| Coil voltage (DC) | 5 V | |
| Coil resistance | 125 Ω | |
| Switching Voltage (DC) | 30 V | |
| Switching Voltage (AC) | 250 V | |
| Connection | PCB connection | |
| Contact material | Ag alloy |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
