G2R-1 24VDC | Omron
Relay, 1 Form C (NO/NC), 24 V (DC), 1.1 kΩ, 10 A, 380 V (AC), monostable, G2R-1 24VDC
Unit Price (€ / pc.)
3.8556 € *
Available: 81 pcs.
Leadtime: 1 Week **
Total Price:
3.86 € *
Price list
Quantity
Price per unit*
1 pcs.
3.8556 €
25 pcs.
3.2844 €
100 pcs.
3.0345 €
250 pcs.
2.8679 €
1000 pcs.
2.6299 €
*incl. VAT plus shipping costs
**Subject to prior sale

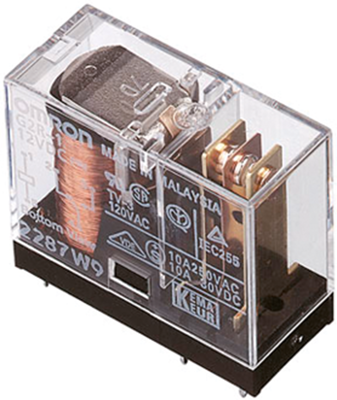

Power relay, type Omron G2R.
Grid: 3.5 or 5.0 mm. Contact type: 1 NO, 1 x CO, or 2 x CO. Contact material: AgSnIn. Coil power, DC/AC: 0.53 W/0.9 VA. Switching voltage: max. 380 VAC/125 VDC. Insulation resistance: min. 1000 Mohm at 500 VDC. Response/release time: max. 15/10 ms AC, 5.0 ms DC. Ambient temperatures: –40 to +70 °C. Certifications: VDE, SEV, Semko; UL, CSA.

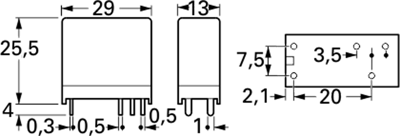

With 3.5 mm grid and 1 x CO contact, type G2R-1.
Switching current: max. 10 A, breaking capacity (resistive load): 300 W/2500 VA. Contact resistance: max. 30 mohm.
Technical attributes (type, rated voltage, coil resistance (±10 %)): G2R-1 24VDC, 24 VDC, 1100 ohm
Technical specifications
| Connection | PCB connection | |
| Contact type | 1 Form C (NO/NC) | |
| Contact material | AgSnIn | |
| Switching Voltage (AC) | 380 V | |
| switching current | 10 A | |
| Coil voltage (DC) | 24 V | |
| Coil type | monostable | |
| Coil resistance | 1.1 kΩ |
Download
Logistics
| Country of origin | QU |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
