ES103059 | OKW
Aluminum enclosure, (L x W x H) 100 x 100 x 40 mm, black (RAL 9005), IP40, ES103059
Unit Price (€ / pc.)
44.9939 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
44.99 € *
Price list
Quantity
Price per unit*
1 pcs.
44.9939 €
10 pcs.
42.3045 €
50 pcs.
40.6147 €
*incl. VAT plus shipping costs
**Subject to prior sale
Enclosure, ES103059, OKW

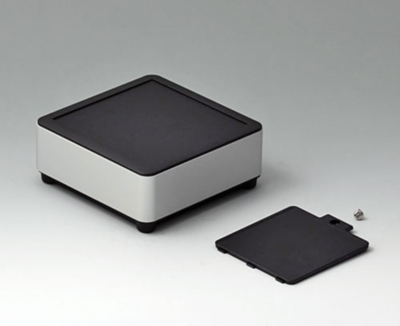

4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with good UV resistance and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 4 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.
Technical specifications
| Width | 100 mm | |
| Colour | black | |
| Height | 40 mm | |
| Length | 100 mm | |
| Material | aluminum | |
| RAL number | 9005 | |
| Degree of protection (IP) | IP40 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 76042100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
