C6013161 | OKW
ABS enclosure, (L x W x H) 160 x 130 x 60 mm, gray white (RAL 9002), IP66, C6013161
Order No.: 50H254
EAN: 4099889514919
MPN:
C6013161
SMART-BOX 130 x 160 >ASA+PC-FR<
Series: SMART-BOX
Unit Price (€ / pc.)
46.2672 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
46.27 € *
Price list
Quantity
Price per unit*
1 pcs.
46.2672 €
10 pcs.
43.5064 €
50 pcs.
41.7571 €
*incl. VAT plus shipping costs
Subject to prior sale

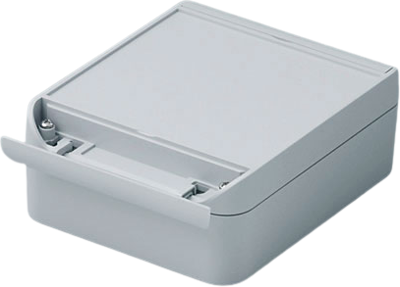

Enclosure, C6013161, OKW
Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | ABS | |
| RAL number | 9002 | |
| Length | 160 mm | |
| Height | 60 mm | |
| Width | 130 mm | |
| Degree of protection (IP) | IP66 | |
| Colour | gray white |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 6/8/11 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
