C6009161 | OKW

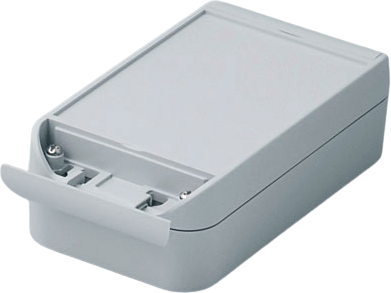

ABS enclosure, (L x W x H) 160 x 90 x 50 mm, gray white (RAL 9002), IP66, C6009161
Unit Price (€ / pc.)
41.9475 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
41.95 € *
Price list
Quantity
Price per unit*
1 pcs.
41.9475 €
10 pcs.
39.4366 €
50 pcs.
37.8658 €
*incl. VAT plus shipping costs
Subject to prior sale
Enclosure, C6009161, OKW
Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 50 mm | |
| Colour | gray white | |
| Degree of protection (IP) | IP66 | |
| Material | ABS | |
| Width | 90 mm | |
| RAL number | 9002 | |
| Length | 160 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 6/8/11 |
