C2524361 | OKW

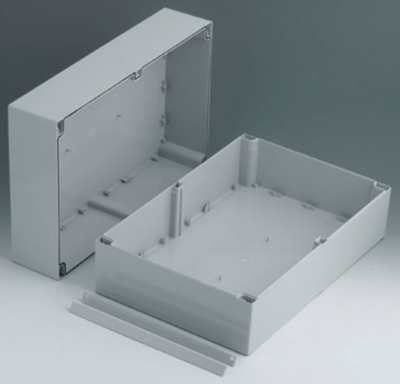

ABS enclosure, (L x W x H) 326 x 205 x 160 mm, light gray (RAL 7035), IP66, C2524361
Order No.: 30H2928
EAN: 4099889513783
MPN:
C2524361
ROBUST-BOX 240 BREIT, Ausf. I, ABS
Series: ROBUST-BOX
Unit Price (€ / pc.)
175.8582 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
175.86 € *
Price list
Quantity
Price per unit*
1 pcs.
175.8582 €
10 pcs.
165.2910 €
50 pcs.
158.6865 €
*incl. VAT plus shipping costs
Subject to prior sale
Enclosure, C2524361, OKW
Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of min. 0.8 mm for use of membrane keyboards.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | ABS | |
| RAL number | 7035 | |
| Length | 326 mm | |
| Height | 160 mm | |
| Width | 205 mm | |
| Degree of protection (IP) | IP66 | |
| Colour | light gray |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
