C2520301 | OKW
ABS enclosure, (L x W x H) 266 x 165 x 160 mm, light gray (RAL 7035), IP66, C2520301
Order No.: 30H2927
EAN: 4099889513776
MPN:
C2520301
ROBUST-BOX 200 BREIT, Ausf. I, ABS
Series: ROBUST-BOX
Unit Price (€ / pc.)
141.6814 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
141.68 € *
Price list
Quantity
Price per unit*
1 pcs.
141.6814 €
10 pcs.
133.1848 €
50 pcs.
127.8655 €
*incl. VAT plus shipping costs
Subject to prior sale
Enclosure, C2520301, OKW

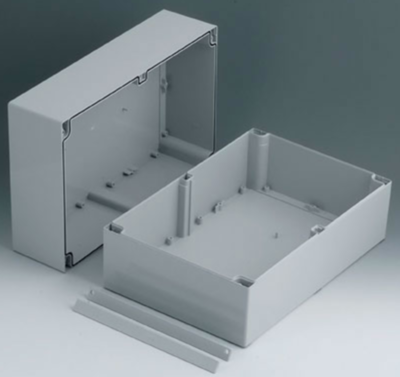

Case shells either usable as top or base part. Each case part contains threads and fixing towers. Lid fixing outside of sealed area. Recess of min. 0.8 mm for use of membrane keyboards.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | ABS | |
| RAL number | 7035 | |
| Length | 266 mm | |
| Height | 160 mm | |
| Width | 165 mm | |
| Degree of protection (IP) | IP66 | |
| Colour | light gray |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
