C2108241 | OKW
ABS enclosure, (L x W x H) 240 x 80 x 80 mm, light gray (RAL 7035), IP66, C2108241
Order No.: 52H314
EAN: 4099889516029
MPN:
C2108241
ROBUST-BOX 80 BREIT, Ausf. I, ABS
Series: ROBUST-BOX
Unit Price (€ / pc.)
52.9074 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
52.91 € *
Price list
Quantity
Price per unit*
1 pcs.
52.9074 €
10 pcs.
49.7182 €
50 pcs.
47.7190 €
*incl. VAT plus shipping costs
Subject to prior sale
ABS enclosure, C2108241, OKW

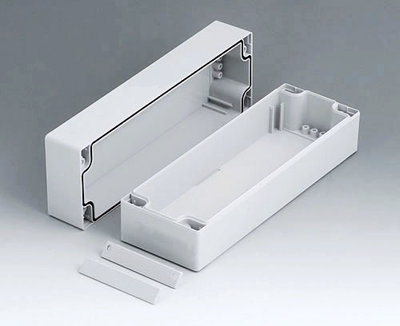

Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 80 mm | |
| Colour | light gray | |
| Degree of protection (IP) | IP66 | |
| Material | ABS | |
| Width | 80 mm | |
| RAL number | 7035 | |
| Length | 240 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
