A9074107 | OKW
ABS enclosure, (L x W x H) 195 x 101 x 44 mm, gray white (RAL 9002), IP65, A9074107
Order No.: 50H570
EAN: 4099889515923
MPN:
A9074107
DATEC-MOBIL-BOX M, Ausf. I, flach
Series: DATEC-MOBIL-BOX
Unit Price (€ / pc.)
43.0780 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
43.08 € *
Price list
Quantity
Price per unit*
1 pcs.
43.0780 €
10 pcs.
40.4957 €
50 pcs.
38.8654 €
*incl. VAT plus shipping costs
**Subject to prior sale

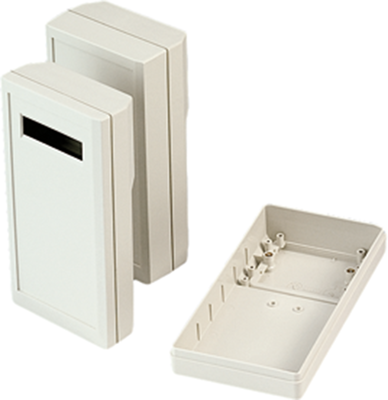

Plastic enclosures, type OKW Datec-Mobil-Box M.
Universal, medium size portable enclosure, seal tight up to IP 65. Provides ample space for interfaces and through holes. Recessed control panel for keyboards. With fixture for the installation of a battery compartment (please order separately) for 4 Mignon cells, with battery compartment lid in the base, screwed on with M 3 screws; Material: ABS. Finish: slightly structured. Overall dimensions: L 195, W 101, D 44 mm. Design 1: with closed control panel, 1.7 mm depth. Design 2: with additional window for compact LCDs with 16 characters x 2 lines. Please order the display pane separately.
Type: A9074107, design 1, without window, gray-white
Technical specifications
| Width | 101 mm | |
| Colour | gray white | |
| Height | 44 mm | |
| Length | 195 mm | |
| Material | ABS | |
| RAL number | 9002 | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
