2032378 | OBO Bettermann

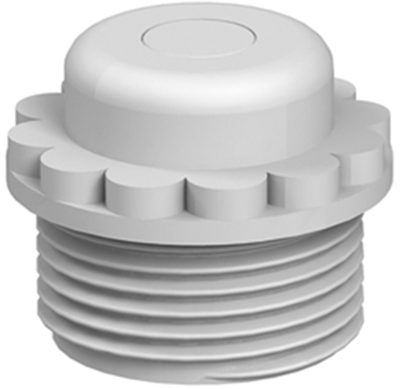

Locking screw, M12, 13 mm, IP54, light gray, 2032378
Order No.: 06N4272
EAN: 4012195481454
MPN:
2032378
90 M12 GE
Unit Price (€ / pc.)
0.2796 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
27.96 € *
Price list
Quantity
Price per unit*
100 pcs.
0.2796 €
500 pcs.
0.2511 €
*incl. VAT plus shipping costs
Subject to prior sale
Screw-on nipples for cable junction boxes, type OBO Bettermann 90 M/2032.
Twist seal for screwing into metric threads to IEC 423, self-sealing cone at the thread end eliminates the need for a thread ring seal. Degree of protection IP 54 can be achieved if the seal is carefully installed; Material: polyethylene. Color: light gray, RAL 7035. Versions: with hole acting as open cable entry or without hole but punch-out membrane and pre-formed hole D which is initially closed.
Technical attributes (type, size, width across flats W, hole diameter D, version): 378, M12, W 15, D 4.0 mm, with membrane
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | locking screw | |
| Thread size | M12 | |
| spanner size | 13 mm | |
| Length | 17 mm | |
| Degree of protection (IP) | IP54 | |
| Material | PE | |
| Colour | light gray |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85381000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
