CCR-02 | NOVA
Resistor kit, 5 %
Active
Product by NOVA at Bürklin Elektronik

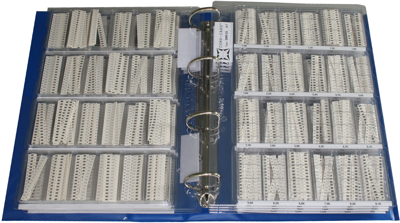

Laboratory kits with resistors, type Nova Comp-Cards SBR/SMR/CBR/CCR/VIT.
In vacuum-formed PVC flatpaks with a transparent snap-on lid and holes for storage in ring binders (described after the resistor kits).
With 1110 carbon film resistors, 0.25 W, type CCR-02.
Brand: Yageo. Size: 0207, D 2.3 x 6.3 mm. Load rating: 0.25 W at +70 °C. Tolerance: ±5.0 %. Connections: axial. Content: practical kit of 1110 items, 48 values from 10R to 1M0 (E6/E12).
Type: CCR-02, kit
| Design | axial 0207 | |
| Leistungsbereich | 0.25 W | |
| max. operating temperature | 155 °C | |
| min. operating temperature | -55 °C | |
| Assembly | THT | |
| Tolerance | ±5 % | |
| resistance values | 10 Ω to 1 MΩ |
| Country of origin | TW |
| Customs tariff number | 85331000 |
| Original Packaging | Carton with 1 piece |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
