ST-5EMP-103-10K OHM | Nidec Copal
Cermet trimmer potentiometer, 11 turns, 10 kΩ, 0.25 W, SMD, lateral, ST-5EMP-103-10K OHM
Unit Price (€ / pc.)
2.2491 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
Trimmer potentiometer, ST-5EMP-103-10K OHM, Nidec Copal
The surface mount cermet trimmer has 14 turns and allows for precise adjustment. It can be easily mounted automatically and is compatible with flow/reflow soldering. Additionally, it features a sealed construction for added durability.

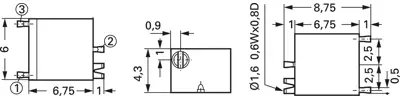

Technical specifications
| Temperature coefficient | ±100 ppm/K | |
| max. number of revolutions | 11 | |
| Track Taper | linear | |
| Assembly | SMD | |
| Width | 6.75 mm | |
| Height | 4.3 mm | |
| Power | 0.25 W | |
| Length | 6 mm | |
| Contact distance | RM 5 | |
| Version | cermet trimmer potentiometer | |
| min. operating temperature | -55 °C | |
| Connection | gull-wing | |
| Tolerance | ±10 % | |
| max. operating temperature | 120 °C | |
| ohmic resistance | 10 kΩ | |
| Seeting | lateral |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85333100 |
| Original Packaging | Bar with 50 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
