ST-4EMB-103-10K OHM | Nidec Copal

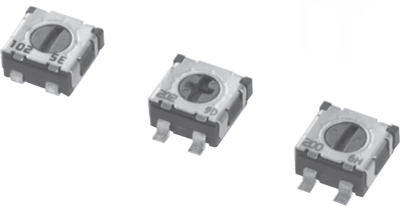

Cermet trimmer potentiometer, 10 kΩ, 0.25 W, SMD, on top, ST-4EMB-103-10K OHM
Unit Price (€ / pc.)
1.0829 € *
Standard delivery time from the manufacturer is: 6 Weeks
Trimmer potentiometer, ST-4EMB-103-10K OHM, Nidec Copal
Single turn surface mount cermet trimmer. RoHS compliant. Sealed construction. Stopper structure prevents terminal pin from being open. Cross slot rotor suitable for automatic adjustment.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 2 mm | |
| min. operating temperature | -55 °C | |
| Width | 5 mm | |
| max. operating temperature | 125 °C | |
| Version | cermet trimmer potentiometer | |
| ohmic resistance | 10 kΩ | |
| max. number of revolutions | 1 | |
| Tolerance | ±20 % | |
| Contact distance | RM 2.35 | |
| Power | 0.25 W | |
| Seeting | on top | |
| Track Taper | linear | |
| Temperature coefficient | ±100 ppm/K | |
| Length | 4.5 mm | |
| Assembly | SMD | |
| Connection | gull-wing |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Reel with 500 pieces |
| Customs tariff number | 85334010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
