ST-32EA-(53)-5K OHM | Nidec Copal
Cermet trimmer potentiometer, 5 kΩ, 0.125 W, SMD, on top, ST-32EA-(53)-5K OHM
Unit Price (€ / pc.)
1.4399 € *
Available: 0 pcs.
Leadtime: On Request **

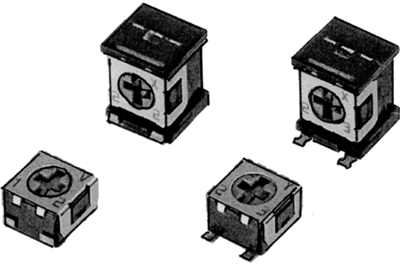

Trimmer potentiometer, ST-32EA-(53)-5K OHM, Nidec Copal
Surface mount cermet trimmer features a single turn design and a rotor with a convenient cross slot for easy adjustment. Leaded terminal is used to ensure strong adhesive strength against PCB bending. The trimmer is sealed for added protection. Can be adjusted from the top.
Technical specifications
| Temperature coefficient | ±100 ppm/K | |
| max. number of revolutions | 1 | |
| Track Taper | linear | |
| Assembly | SMD | |
| Width | 3.5 mm | |
| Height | 2 mm | |
| Power | 0.125 W | |
| Length | 3.2 mm | |
| Contact distance | RM 2.1 | |
| Version | cermet trimmer potentiometer | |
| min. operating temperature | -55 °C | |
| Connection | J-hook | |
| Tolerance | ±20 % | |
| max. operating temperature | 125 °C | |
| ohmic resistance | 5 kΩ | |
| Seeting | on top |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85334010 |
| Original Packaging | Bulk with 100 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
