ST-32EA-(51)-50 OHM | Nidec Copal

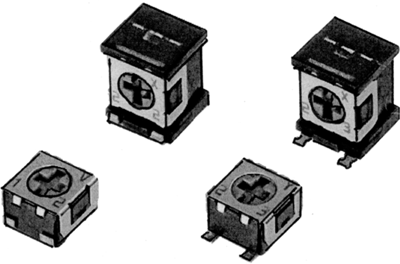

Cermet trimmer potentiometer, 50 Ω, 0.125 W, SMD, on top, ST-32EA-(51)-50 OHM
Unit Price (€ / pc.)
1.0115 € *
Standard delivery time from the manufacturer is: 48 Weeks
Trimmer potentiometer, ST-32EA-(51)-50 OHM, Nidec Copal
Surface mount cermet trimmer features a single turn design and a rotor with a convenient cross slot for easy adjustment. Leaded terminal is used to ensure strong adhesive strength against PCB bending. The trimmer is sealed for added protection. Can be adjusted from the top.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 2 mm | |
| Length | 3.2 mm | |
| Power | 0.125 W | |
| Contact distance | RM 2.1 | |
| Temperature coefficient | ±250 ppm/K | |
| max. operating temperature | 125 °C | |
| Connection | J-hook | |
| min. operating temperature | -55 °C | |
| Track Taper | linear | |
| Version | cermet trimmer potentiometer | |
| Assembly | SMD | |
| max. number of revolutions | 1 | |
| Width | 3.5 mm | |
| Seeting | on top | |
| Tolerance | ±20 % | |
| ohmic resistance | 50 Ω |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Bulk with 100 pieces |
| Customs tariff number | 85334010 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
