RJ-5EW-503-50K OHM | Nidec Copal
Cermet trimmer potentiometer, 14 turns, 50 kΩ, 0.25 W, THT, on top, RJ-5EW-503-50K OHM
Unit Price (€ / pc.)
1.9040 € *
Available: 0 pcs.
Leadtime: On Request **

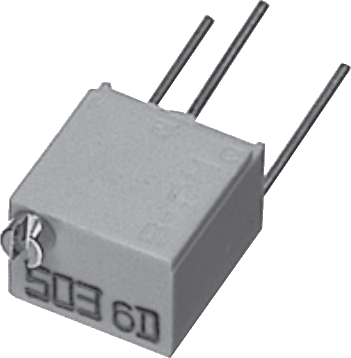

Trimmer potentiometer, RJ-5EW-503-50K OHM, Nidec Copal
Cermet trimmer is equipped with 14 turns and enables accurate fine-tuning. Specifically engineered with a sealed structure and utilizes UL Recognized 94V-0 resin material, with the exception of adhesives.
Technical specifications
| Version | cermet trimmer potentiometer | |
| ohmic resistance | 50 kΩ | |
| Tolerance | ±10 % | |
| Power | 0.25 W | |
| Assembly | THT | |
| Track Taper | linear | |
| Temperature coefficient | ±100 ppm/K | |
| Rotary range, electrical | 3960 ° | |
| Mechanic rotary range | 5040 ° | |
| max. number of revolutions | 14 | |
| Seeting | on top | |
| Connection | solder pin | |
| Contact distance | RM 2.5 | |
| Length | 6 mm | |
| Width | 4 mm | |
| Height | 6 mm | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 120 °C |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85334010 |
| Original Packaging | Bulk with 100 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
