RECW20D-50-201-1 | Nidec Copal

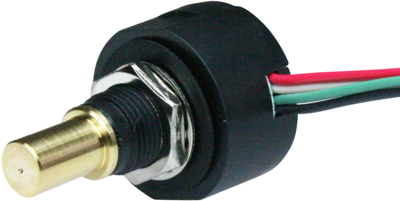

Rotary optical encoder, 5 V, impulses 50, RECW20D-50-201-1
Active
Product by Nidec Copal at Bürklin Elektronik
Incremental encoders, type Copal RESW../RECW.
Suitable for manual operation, with or without detent function. Rectangular output shafts, resolution 25 or 50 pulses per turn, compact design, diameter only 20 mm, with front-panel sealing ring; Input voltage: 5.0 VDC ±5.0%. Input current: 50 mA max., output signal High/Low: at least +4.5 V/ max. +0.5 V.
Type: RECW20D-50, with detent, 50 pulses
| Version | Rotary optical encoder | |
| Output signal | 4.5 V | |
| Voltage | 5 V | |
| Pulses per revolution | 50 |
| Country of origin | JP |
| Customs tariff number | 85437090 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
