UPW1V471MPD1TD | NICHICON
Electrolytic capacitor, 470 µF, 35 V (DC), ±20 %, radial, pitch 6 mm, Ø 10 mm
Unit Price (€ / pc.)
0.4284 € *
Available: 470 pcs.
Leadtime: 25 Weeks **
Total Price:
4.28 € *
Price list
Quantity
Price per unit*
10 pcs.
0.4284 €
50 pcs.
0.3689 €
250 pcs.
0.3213 €
1000 pcs.
0.2856 €
2000 pcs.
0.2570 €
*incl. VAT plus shipping costs
**Subject to prior sale

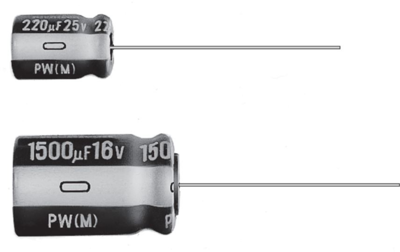

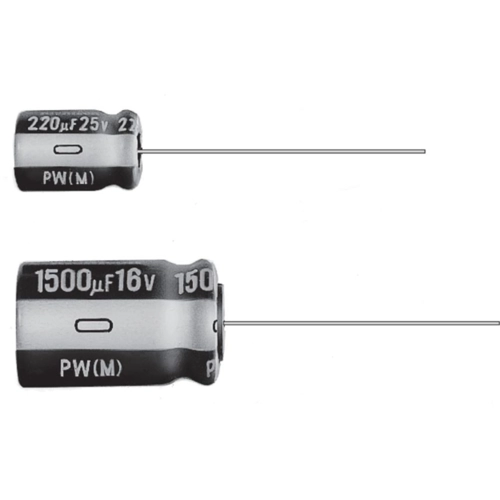

Aluminum electrolytic capacitor, UPW1V471MPD1TD, NICHICON
Features
- Smaller case size and lower impedance than UPM
- Low impedance and high reliability withstanding 2000 hours to 8000 hours
- Capacitance ranges available based on the numerical values in E12 series under JIS
- Compliant to the RoHS directive
Technical specifications
| Version | polar | |
| Design | radial | |
| diameter | 10 mm | |
| Capacity | 470 µF | |
| Length | 20 mm | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -55 °C | |
| Rated voltage (DC) | 35 V | |
| Grid | 6 mm | |
| Ripple current | 915 mA | |
| Tolerance | ±20 % |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85322200 |
| Original Packaging | Ammopack with 500 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
