UCY2G330MHD1TO | NICHICON
Electrolytic capacitor, 33 µF, 400 V (DC), ±20 %, radial, pitch 6 mm, Ø 12 mm, UCY2G330MHD1TO
Unit Price (€ / pc.)
0.9877 € *
Standard delivery time from the manufacturer is: 28 Weeks

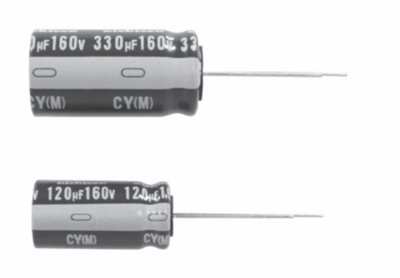

Aluminum electrolytic capacitor, UCY2G330MHD1TO, NICHICON
Features
- High ripple current and Long Life product withstanding load life of 10000 to 12000 hours at +105 °C
- Suited for ballast application
- Compliant to the RoHS directive
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 6 mm | |
| Ripple current | 385 mA | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 105 °C | |
| Version | polar | |
| diameter | 12 mm | |
| Rated voltage (DC) | 400 V | |
| Tolerance | ±20 % | |
| Capacity | 33 µF | |
| Design | radial | |
| Length | 25 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Country of origin | JP |
| Original Packaging | Ammopack with 500 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
