UCS2W330MHD1TN | NICHICON
Electrolytic capacitor, 33 µF, 450 V (DC), ±20 %, radial, pitch 7 mm, Ø 16 mm, UCS2W330MHD1TN
Unit Price (€ / pc.)
1.2257 € *
Available: 0 pcs.
Leadtime: On Request **

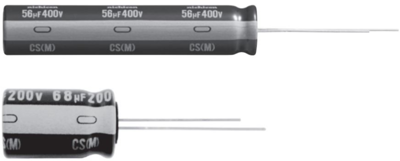

Aluminum electrolytic capacitor, UCS2W330MHD1TN, NICHICON
Radial Lead Type
Features
- High ripple current and Long Life product withstanding load life of 8000 to 10000 hours at +105 °C
- Suited for ballast application
- Compliant to the RoHS directive
Technical specifications
| Rated voltage (DC) | 450 V | |
| Capacity | 33 µF | |
| diameter | 16 mm | |
| Grid | 7 mm | |
| Length | 25 mm | |
| Version | polar | |
| Design | radial | |
| min. operating temperature | -40 °C | |
| Tolerance | ±20 % | |
| max. operating temperature | 105 °C | |
| Ripple current | 490 mA |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85322200 |
| Original Packaging | Ammopack with 1,000 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
