PMBT3904,215 | NEXPERIA
Bipolar junction transistor, NPN, 200 mA, 40 V, SMD, SOT-23, PMBT3904,215
Unit Price (€ / pc.)
0.0108 € *
Standard delivery time from the manufacturer is: 8 Weeks
NPN switching transistor, PMBT3904,215, NXP

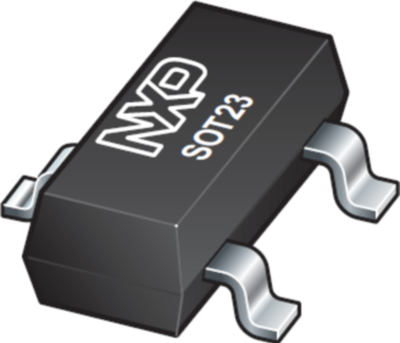

NPN switching transistor in a SOT23 plastic package
Features
- Collector current capability IC = 200 mA
- Collector-emitter voltage VCEO = 40 V
Applications
- General switching and amplification
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | SOT-23 | |
| Max DC amplification | 300 mA | |
| Transit frequency fTmin | 300 MHz | |
| Saturation voltage | 200 mV | |
| Min DC gain | 60 mA | |
| Power dissipation | 0.25 W | |
| Assembly | SMD | |
| max.voltage between collector and emitter Vceo | 40 V | |
| max.voltage between collector and base Vcbo | 60 V | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -65 °C | |
| Version | NPN | |
| Collector current | 200 mA | |
| Rated current | 200 mA |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85412900 |
| Country of origin | CN |
| Original Packaging | Reel with 3,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 6/8/11 |
