H07RN-F 5G6 TITANEX | Nexans

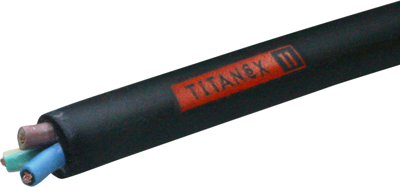

Special elastomer control line H07RN-F TITANEX 5 G 6.0 mm², AWG 10, unshielded, black

Order No.: 95F3846
EAN: 4099891264017
MPN:
H07RN-F 5G6 TITANEX
Series: H07RN-F TITANEX
Nexans
default L
Image may differ
Unit Price (€ / mtr.)
9.7461 € *
Available: 56 mtr.
Leadtime: 2 Weeks **
Total Price:
9.75 € *
Price list
Quantity
Price per unit*
1 mtr.
9.7461 €
10 mtr.
8.5799 €
100 mtr.
7.5208 €
200 mtr.
7.2352 €
400 mtr.
6.9496 €
*incl. VAT plus shipping costs
**Subject to prior sale

Control cable, H07RN-F 5G6 TITANEX, NEXANS

H07RN-F TITANEX® flexible cable is intended for installations with moving equipment, electric appliances and for building sites. The cable may be rated 0,6/1 kV where the installation has built-in protection and for motors in lifting appliances - machine tools - etc.

FEATURES

  • Good chemical resistance
  • Oil-resistant
  • Flame-retardant
  • Mechanical resistance

Technical Data

  • Cable material: Copper, bright
  • Core insulation material: Elastomer
  • Color: black
  • Conductor category: Cl.5 = fine-stranded
Technical specifications
Core insulation material special elastomer
Core colour sequence VDE 0293-308
Number of cores 5
Version control line
Outer diameter 22 mm
AWG cross-section AWG 10
Colour black
Conductor category CL.5 = fine stranded
Cable material copper, bright
Cable cross-section 6.0 mm²
Material special elastomer
Rated voltage 750 V
Rated voltage U0 450 V
Test voltage 2.5 kV
Shielding unshielded
Protective conductor available Yes
Temperature range (active) -25 °C to 55 °C
Temperature range (unmoved) -25 °C to 85 °C
Logistics
Country of origin FR
Customs tariff number 85444995
Original Packaging Ring with 100 meters
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
Cable cross-section
Outer diameter
Number of cores
AWG cross-section
Material
Core colour sequence
Version
Conductor category
Temperature range (active)
Temperature range (unmoved)
Rated voltage
Cable material
Rated voltage U0
Shielding
Core insulation material
Colour
1 item in 16 variations
*incl. VAT plus shipping costs
Item description
Total
Price list
Cable cross-section
Outer diameter
Number of cores
AWG cross-section
Material
Core colour sequence
Version
Conductor category
Temperature range (active)
Temperature range (unmoved)
Rated voltage
Cable material
Rated voltage U0
Shielding
Core insulation material
Colour
Special elastomer control line H07RN-F TITANEX 4 G 1.5 mm², unshielded, black
Order No.:
 95F3802
Manufacturer:
 Nexans
Manufacturer SKU:
 H07RN-F 4G1,5 TITANEX
Available: 43 mtr. Leadtime: 2 Weeks **
Total Price: 2.87 € *
1 mtr.
2.8679 €
25 mtr.
2.4395 €
100 mtr.
2.2610 €
200 mtr.
2.1658 €
800 mtr.
1.9873 €
1.5 mm²
13 mm
4
special elastomer
VDE 0293-308
control line
CL.5 = fine stranded
-25 °C to 55 °C
-25 °C to 85 °C
750 V
copper, bright
450 V
unshielded
special elastomer
black
Special elastomer control line H07RN-F TITANEX 5 G 6.0 mm², AWG 10, unshielded, black
Order No.:
 95F3846
Manufacturer:
 Nexans
Manufacturer SKU:
 H07RN-F 5G6 TITANEX
Available: 56 mtr. Leadtime: 2 Weeks **
Total Price: 9.75 € *
1 mtr.
9.7461 €
10 mtr.
8.5799 €
100 mtr.
7.5208 €
200 mtr.
7.2352 €
400 mtr.
6.9496 €
6.0 mm²
22 mm
5
AWG 10
special elastomer
VDE 0293-308
control line
CL.5 = fine stranded
-25 °C to 55 °C
-25 °C to 85 °C
750 V
copper, bright
450 V
unshielded
special elastomer
black
Special elastomer control line H07RN-F TITANEX 3 G 1.5 mm², unshielded, black
Order No.:
 95F240
Manufacturer:
 Nexans
Manufacturer SKU:
 H07RN-F 3G1,5 TITANEX
Available: 64 mtr. Leadtime: 4 Weeks **
Total Price: 2.46 € *
1 mtr.
2.4633 €
10 mtr.
2.1658 €
100 mtr.
1.9040 €
200 mtr.
1.8326 €
800 mtr.
1.7017 €
1.5 mm²
11 mm
3
special elastomer
VDE 0293-308
control line
CL.5 = fine stranded
-25 °C to 55 °C
-25 °C to 85 °C
750 V
copper, bright
450 V
unshielded
special elastomer
black
Special elastomer control line H07RN-F TITANEX 2 x 1.5 mm², unshielded, black
Order No.:
 95F3750
Manufacturer:
 Nexans
Manufacturer SKU:
 H07RN-F 2X1,5 TITANEX
Available: 63 mtr. Leadtime: 2 Weeks **
Total Price: 2.20 € *
1 mtr.
2.2015 €
25 mtr.
1.8802 €
100 mtr.
1.7255 €
200 mtr.
1.6541 €
800 mtr.
1.5113 €
1.5 mm²
11 mm
2
special elastomer
VDE 0293-308
control line
CL.5 = fine stranded
-25 °C to 55 °C
-25 °C to 85 °C
750 V
copper, bright
450 V
unshielded
special elastomer
black
Special elastomer control line H07RN-F TITANEX 3 G 6.0 mm², AWG 10, unshielded, black
Order No.:
 95F3784
Manufacturer:
 Nexans
Manufacturer SKU:
 H07RN-F 3G6 TITANEX
Available: 188 mtr. Leadtime: 2 Weeks **
Total Price: 7.31 € *
1 mtr.
7.3066 €
10 mtr.
6.4260 €
100 mtr.
5.6406 €
200 mtr.
5.4264 €
800 mtr.
5.0575 €
6.0 mm²
18 mm
3
AWG 10
special elastomer
VDE 0293-308
control line
CL.5 = fine stranded
-25 °C to 55 °C
-25 °C to 85 °C
750 V
copper, bright
450 V
unshielded
special elastomer
black
Special elastomer control line H07RN-F TITANEX 5 G 2.5 mm², unshielded, black
Order No.:
 95F242
Manufacturer:
 Nexans
Manufacturer SKU:
 H07RN-F 5G2,5 TITANEX
Available: 28 mtr. Leadtime: 2 Weeks ** Next delivery: 100 mtr. on 2024-05-02
Total Price: 4.27 € *
1 mtr.
4.2721 €
10 mtr.
3.7604 €
100 mtr.
3.2844 €
200 mtr.
3.1773 €
2.5 mm²
17 mm
5
special elastomer
VDE 0293-308
control line
CL.5 = fine stranded
-25 °C to 55 °C
-25 °C to 85 °C
750 V
copper, bright
450 V
unshielded
special elastomer
black
Special elastomer control line H07RN-F TITANEX 5 G 4.0 mm², AWG 12, unshielded, black
Order No.:
 95F3842
Manufacturer:
 Nexans
Manufacturer SKU:
 H07RN-F 5G4 TITANEX
Available: 58 mtr. Leadtime: 2 Weeks **
Total Price: 7.47 € *
1 mtr.
7.4732 €
10 mtr.
6.5807 €
100 mtr.
5.7715 €
200 mtr.
5.5573 €
800 mtr.
5.1884 €
4.0 mm²
19 mm
5
AWG 12
special elastomer
VDE 0293-308
control line
CL.5 = fine stranded
-25 °C to 55 °C
-25 °C to 85 °C
750 V
copper, bright
450 V
unshielded
special elastomer
black
Special elastomer control line H07RN-F TITANEX 3 G 2.5 mm², unshielded, black
Order No.:
 95F3776
Manufacturer:
 Nexans
Manufacturer SKU:
 H07RN-F 3G2,5 TITANEX
Available: 311 mtr. Leadtime: 2 Weeks **
Total Price: 2.68 € *
1 mtr.
2.6775 €
10 mtr.
2.3681 €
100 mtr.
2.0706 €
200 mtr.
1.9992 €
2.5 mm²
14 mm
3
special elastomer
VDE 0293-308
control line
CL.5 = fine stranded
-25 °C to 55 °C
-25 °C to 85 °C
750 V
copper, bright
450 V
unshielded
special elastomer
black
Special elastomer control line H07RN-F TITANEX 7 G 1.5 mm², unshielded, black
Order No.:
 95F3867
Manufacturer:
 Nexans
Manufacturer SKU:
 H07RN-F 7G1,5 TITANEX
Available: 0 mtr. Leadtime: 2 Weeks **
Total Price: 6.06 € *
100 mtr.
6.0571 €
1.5 mm²
17 mm
7
special elastomer
VDE 0293-308
control line
CL.5 = fine stranded
-25 °C to 55 °C
-25 °C to 85 °C
750 V
copper, bright
450 V
unshielded
special elastomer
black
Special elastomer control line H07RN-F TITANEX 3 G 4.0 mm², AWG 12, unshielded, black
Order No.:
 95F3780
Manufacturer:
 Nexans
Manufacturer SKU:
 H07RN-F 3G4 TITANEX
Available: 0 mtr. Leadtime: 2 Weeks ** Next delivery: 100 mtr. on 2024-05-02
Total Price: 6.22 € *
1 mtr.
6.2237 €
10 mtr.
5.4978 €
100 mtr.
4.8076 €
200 mtr.
4.6291 €
800 mtr.
4.3316 €
4.0 mm²
16 mm
3
AWG 12
special elastomer
VDE 0293-308
control line
CL.5 = fine stranded
-25 °C to 55 °C
-25 °C to 85 °C
750 V
copper, bright
450 V
unshielded
special elastomer
black
Special elastomer control line H07RN-F TITANEX 5 G 1.5 mm², unshielded, black
Order No.:
 95F241
Manufacturer:
 Nexans
Manufacturer SKU:
 H07RN-F 5G1,5 TITANEX
Available: 0 mtr. Leadtime: 2 Weeks **
Total Price: 3.26 € *
1 mtr.
3.2606 €
10 mtr.
2.8679 €
100 mtr.
2.5228 €
200 mtr.
2.4276 €
800 mtr.
2.2610 €
1.5 mm²
14 mm
5
special elastomer
VDE 0293-308
control line
CL.5 = fine stranded
-25 °C to 55 °C
-25 °C to 85 °C
750 V
copper, bright
450 V
unshielded
special elastomer
black
Special elastomer control line H07RN-F TITANEX 4 G 2.5 mm², unshielded, black
Order No.:
 95F3806
Manufacturer:
 Nexans
Manufacturer SKU:
 H07RN-F 4G2,5 TITANEX
Available: 0 mtr. Leadtime: 2 Weeks **
Total Price: 4.24 € *
100 mtr.
4.2364 €
2.5 mm²
15 mm
4
special elastomer
VDE 0293-308
control line
CL.5 = fine stranded
-25 °C to 55 °C
-25 °C to 85 °C
750 V
copper, bright
450 V
unshielded
special elastomer
black
Special elastomer control line H07RN-F TITANEX 4 G 1.0 mm², AWG 18, unshielded, black
Order No.:
 95F3798
Manufacturer:
 Nexans
Manufacturer SKU:
 H07RN-F 4G1 TITANEX
Available: 0 mtr. Leadtime: 2 Weeks **
Total Price: 2.57 € *
100 mtr.
2.5704 €
1.0 mm²
12 mm
4
AWG 18
special elastomer
VDE 0293-308
control line
CL.5 = fine stranded
-25 °C to 55 °C
-25 °C to 85 °C
750 V
copper, bright
450 V
unshielded
special elastomer
black
Special elastomer control line H07RN-F TITANEX 2 x 2.5 mm², unshielded, black
Order No.:
 95F3754
Manufacturer:
 Nexans
Manufacturer SKU:
 H07RN-F 2X2,5 TITANEX
Available: 0 mtr. Leadtime: 2 Weeks **
Total Price: 2.70 € *
100 mtr.
2.7013 €
200 mtr.
2.6061 €
800 mtr.
2.3800 €
2.5 mm²
13 mm
2
special elastomer
VDE 0293-308
control line
CL.5 = fine stranded
-25 °C to 55 °C
-25 °C to 85 °C
750 V
copper, bright
450 V
unshielded
special elastomer
black
Special elastomer control line H07RN-F TITANEX 3 G 1.0 mm², AWG 18, unshielded, black
Order No.:
 95F3769
Manufacturer:
 Nexans
Manufacturer SKU:
 H07RN-F 3G1 TITANEX
Available: 0 mtr. Leadtime: 2 Weeks **
Total Price: 1.99 € *
100 mtr.
1.9873 €
1.0 mm²
10 mm
3
AWG 18
special elastomer
VDE 0293-308
control line
CL.5 = fine stranded
-25 °C to 55 °C
-25 °C to 85 °C
750 V
copper, bright
450 V
unshielded
special elastomer
black
Special elastomer control line H07RN-F TITANEX 2 x 1.0 mm², AWG 18, unshielded, black
Order No.:
 95F3746
Manufacturer:
 Nexans
Manufacturer SKU:
 H07RN-F 2X1 TITANEX
Available: 0 mtr. Leadtime: 2 Weeks **
Total Price: 1.81 € *
100 mtr.
1.8088 €
200 mtr.
1.7255 €
800 mtr.
1.5827 €
1.0 mm²
10 mm
2
AWG 18
special elastomer
VDE 0293-308
control line
CL.5 = fine stranded
-25 °C to 55 °C
-25 °C to 85 °C
750 V
copper, bright
450 V
unshielded
special elastomer
black
