NC7MD-LX | Neutrik
XLR panel plug, 7 pole, silver-plated, 1 mm², AWG 18, metal, NC7MD-LX
Unit Price (€ / pc.)
13.8040 € *
Standard delivery time from the manufacturer is: 1 Week

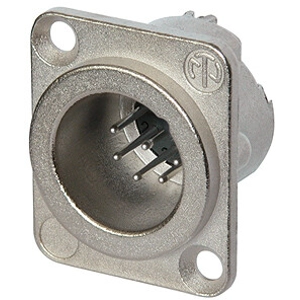

Chassis connector male, NC7MD-LX, Neutrik
7 pole male receptacle, solder cups, nickel housing, silver contacts. This product features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding.
Features
- All metal housing offers best overall RF protection and electromagnetic shielding
- Male connector's retention bar replaces plastic design with all metal version improving pull-out force
- Optional connection to easily join pin1 to chassis ground
- Duplex ground contact for excellent contact integrity between chassis and cable connector
- Larger solder contacts for easier termination
- D-style housing provides installation compatibility with industry standard D mounting dimensions
Technical specifications
| Rated voltage | 50 V | |
| AWG cross-section | AWG 18 | |
| Cable cross-section | 1 mm² | |
| Type of locking | latch locking | |
| contact surface | silver-plated | |
| Pin number | 7 pole | |
| Assembly | chassis mounting | |
| Enclosure | metal | |
| Colour | natural | |
| Version | panel plug | |
| Rated current | 5 A | |
| Contact connection | solder connection |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85366990 |
Compliance
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
